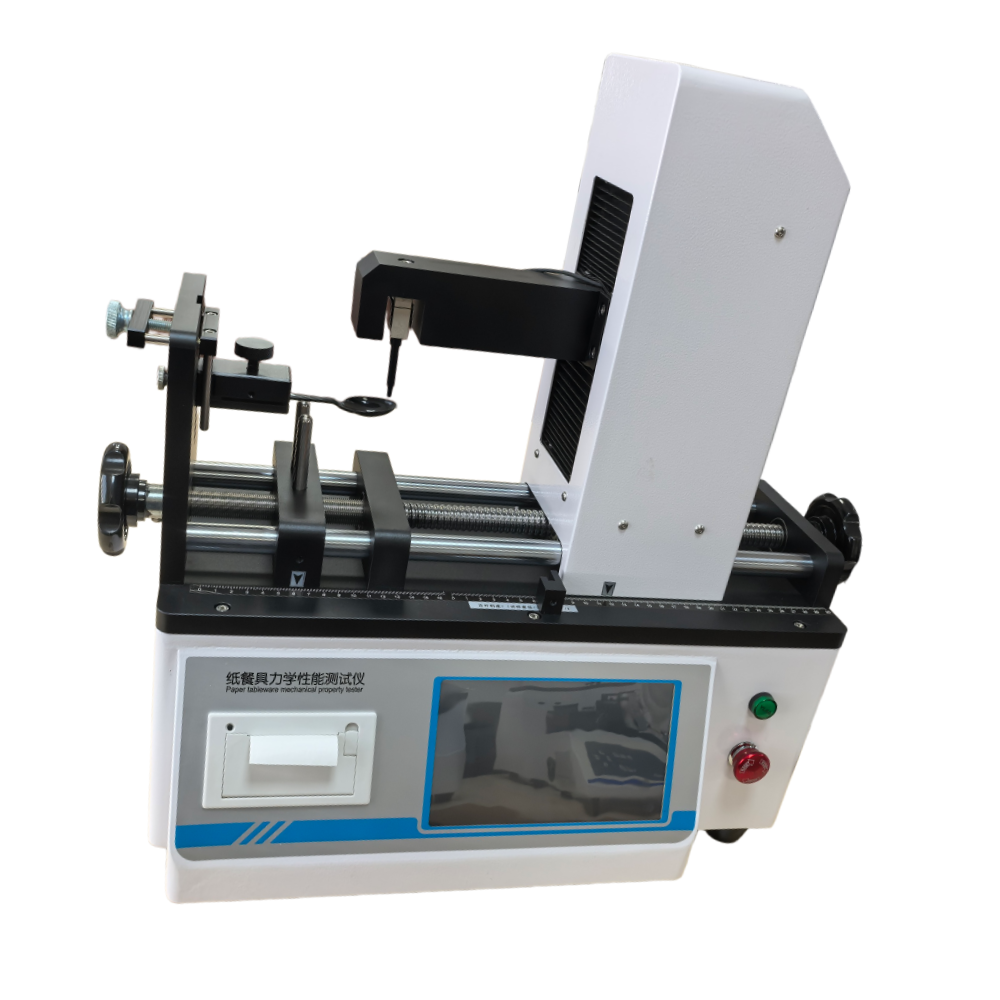

XHV-51 Paper Tableware Mechanical Property Tester for Stiffness and Bending Resistance

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

The Paper Tableware Mechanical Performance Tester is a professional device designed and developed in accordance with the relevant requirements of "GB/T27591-2025 Paper Tableware". It is specifically designed for measuring the overall stiffness of paper plates and the bending resistance of paper cutlery (fork, spoon).

Product Features

1. Provide dual testing modes for "overall stiffness" and "bending resistance" to meet users' needs for multiple application scenarios.

2. The machine can be stopped according to test requirements by setting test conditions such as force value and displacement, meeting different testing needs of users.

3. Intelligent designs such as limit protection, overload protection, automatic return, and emergency stop ensure operational safety.

4. Equipped with internationally renowned brand force sensors, it can provide force accuracy better than level 0.5 with good repeatability.

5. Equipped with precision ball screws, it can provide displacement accuracy better than Grade 0.5, ensuring stable and reliable operation.

6. Scientifically rigorous structural design ensures silent and stable operation of the instrument during the testing process, laying the foundation for high-precision testing.

7. Equipped with multiple pressure overload and electrical safety protection to ensure the safety of both the instrument and the operating personnel.

8. Eight-inch industrial-grade color HD touch screen, with clear view, sensitive touch, and easy operation;

9. One-click operation, fully intelligent system control, and automated completion of the testing process;

10. Equipped with a high-precision and high-speed sampling chip to ensure the accuracy, real-time performance, and repeatability of test results;

11. Equipped with a bilingual operation interface in Chinese and English, meeting different language requirements;

12. The test curve displays the trend of force changes in real-time during the testing process;

13. Support functions such as experimental data storage, quick query, data traceability, and overlay and comparative analysis of grouped experimental data;

14. It features user-level permission management, customizable permission control, and password login, facilitating user management;

15. The system is embedded with a USB data interface, facilitating external access and data transmission of the system;

16. Equipped with a micro printer, test results can be directly output and printed;

Technical Parameter

Max test diameter	300mm
Max support distance	100mm
Max drop distance	40mm
Testing speed	0.1-500mm/min
Displace accuracy	0.1mm
Force measurement range	0-20N
Force resolution	0.01N
Force testing accuracy	±0.5% of indication value
Dimension	580mm(L)×280mm(B)×580mm(H)
Weight	30Kgs
Power Supply	220V, 50/60Hz
Standard Configuration	Mainframe, Micro Printer, Test Fixtures
