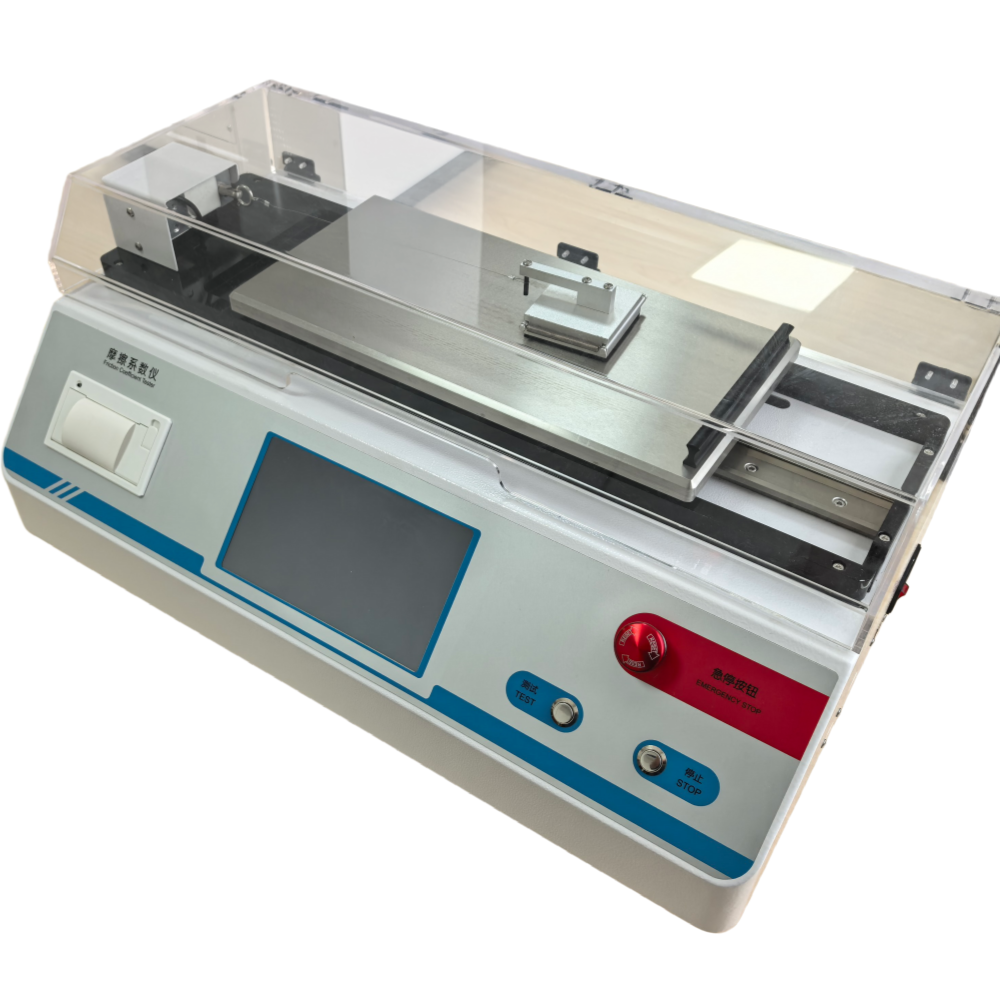

XHS-08E Coefficient of Friction Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

XHS-08E Coefficient of Friction Tester is mainly applying in testing the static and dynamic friction coefficient of plastic film and sheet. It is controlled by computer, measures and displays automatically the friction coefficient with reliable performance, high accuracy and multi function.

Test Standards

GB1006 , ISO8295 ,GB10006, ASTM D1894 ,TAPPIT816

Technical Parameter

Operation	8 Inch Touch Screen, Automatic Test
Measurement range	0-5N (Optional: 0-10N, 0-30N)
Force value acquisition frequency	2ms
Resolution	0.001N
Force Accuracy	Better than 0.5% of indication value
Dimension of slider	63 x 63mm
Weight of slider	200g, 500g
Max Stroke	290mm (ISO 70mm, ASTM 150mm) adjustable
Testing accuracy	±0.5%
Testing Speed	1-600mm/min (adjustable)
Test Mode:	GB10006,ISO8295,ASTMD1894+1 customized method
Dimension	660mm (L)×400 mm (W)×320 mm (H)
Weight	32Kgs
Power Supply	220V, 50/60Hz
Standard Configuration	Mainframe, Micro Printer, Sled of 200g, Sled of 500g, Print Paper 3 Rolls, USB output
