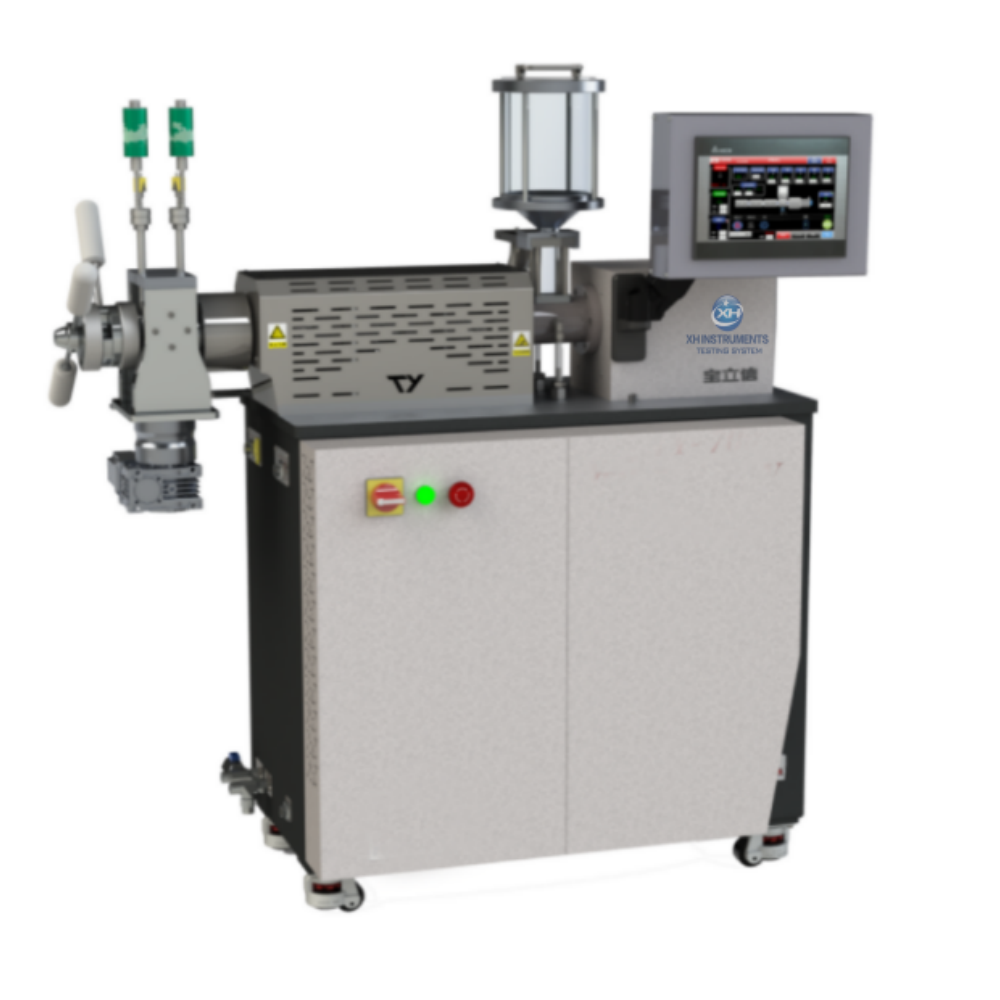

XHS-39CT Filterability Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

This machine is composed of small precision single screw extruder, melt pump, filter, high precision melt temperature and pressure sensor, PLC program measurement and analysis system

Test Standards

ISO 12418-2:2012, EN 15348-2024

Technical Parameter

Parameters	Specifications
Screw diameter	Φ20mm
Screw L/D ratio	28:1
Screw compression ratio	3:1
Screw material	38CrMoAla advanced nitride high-high strength alloy steel
Screw speed	Rated from 0.1 to 100 rpm, servo speed regulation, pressure closed-loop control
Temperature range	Zone 1/2/3/4, RT ~360℃ (Zone 5/6/7, 350℃)
Heating method	7-Channel SSR Temperature Control Zone and 3-Channel Temperature Measurement Zone
Melt Pressure Transducer Range	P1:100bar P2:350bar
Metallic Net Filter Size	40um
Main Motor Power	1500W(servo motor)
Transmission System	20:1 ratio rectangular vortex line bevel gear reduction system
Cooling equipment	KAKU ball-insert cooling fan×4
Maximum flow rate of the melt pump	100cm³/min
Melt pump motor power	750W(servo motor)
Heating area power	Zone 1-3: 2.7 kW; Zone 4: 0.9 kW; Zone 5: 1.2 kW; Zone 6-7: 1kW
Power supply	AC 380v±10%/5-60Hz/8200W
Overall dimensions	1500×530×1520mm (L/W/H)
Weight	380Kg
