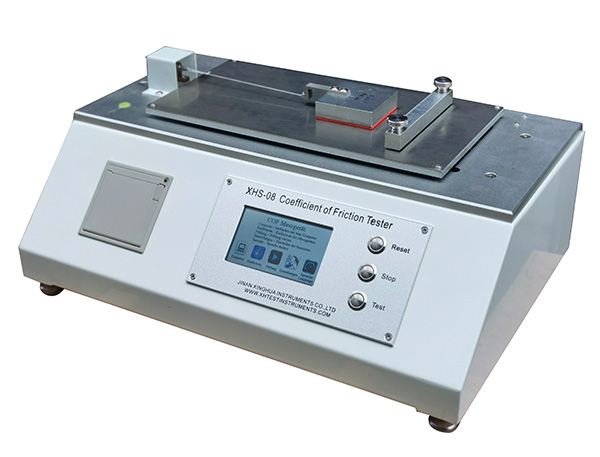

XHS-08 Coefficient of Friction Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

XHS-08 Coefficient of Friction Tester is mainly applying in testing the static and dynamic friction coefficient of plastic film and sheet. It is controlled by computer, measures and displays automatically the friction coefficient with reliable performance, high accuracy and multi function.

Test Standards

GB10006, ISO8295, ASTMD1894, TAPPIT816

Product Features

Static and Kinetic coefficients of friction can be tested simultaneously.

Micro-computer control, fully digital automatic system, touch screen displays friction force during the test and display static and dynamic friction coefficient as test results.

Aluminum alloy operation panel, adopt high precision load cell.

Special drive system (use stepper motor) design to make test smoothly, test is more accurate.

Have statistical analysis function, also can be connect to PC to display testing graphs.

Fast speed mini-printer to print out the test results.

Technical Parameter

Measurement range	0-5N
Resolution	0.001N
Dimension of slider	63 x 63mm，wrapped with sponge rubber
Weight of slider	200±2g
Dimension of working plate	170 x336mm
Testing accuracy	±0.5%
Speed of slider	0-150mm/min (adjustable)
Travel of slider	0-150mm (adjustable)
Dimension	500 x 335 x 220mm
Weight	25Kgs
Power Supply	220V, 50Hz
