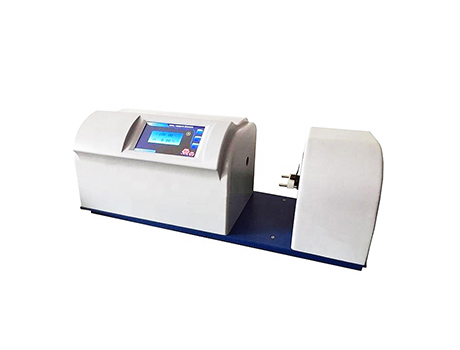

XHS-04C Haze Meter

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Haze Meter : As a computerzied automatic measurement instrument, transmittance & haze instrument is designed according to ASTM D1003-2007. The instrument has a wide range of applications in the fields of national defense, scientific research and industrial production. It is used to perform the transmisstance or/and haze test on all transparent and translucent plane parallel injector, such as plastic plates, sheets, plastic films and sheet glass.

Test Standards

ASTM D1003-2007

Product Features

Parallel illumination, scattering hemisphere and integrating sphere optional receiving mode.

Touch screen operating system, automatic data processing system, no-knob operation and very easy to use. The device is equiped with a standard USB interface and has the capability of USB storage.

The resolution of transmittance is 0.01% and the that of haze is 0.01%.

With the adoption of the modulator, the instrument is free of the ambient light effects and has no necessity to use the darkroon, and ensures the measurement accuracy of large samples.

The device equiped with a magnetic thin film and a liquid sample cup holder. It’s of great convenience for the user to operate.

The machine can connect PC.

Technical Parameter

System	1)Collimated illumination, diffuse vision, integrating sphere receiving mode 2)Sample window size: incident window:25mm; exit window: 21mm 3)Light source: C light (6774K), A light (2856K) 4)Receiver: silicon photovoltaic cells
Electric System	Large LCD touch screen. Minimum reading: transmittance: 0.01%; haze:0.01%. USB port and USB flash drive storage
Range	Transmittance: 0%-100.00% Haze: 0%-30.00%
Sample Size	Solid standard sample size: 50mmX50mm Tank dimensions: 50mmX50mmX10mm Film sample size: 50mmX50mm
Calibration Sample	40mmX2mm: one piece
Others	Dimensions of the instrument: Length: 740mm; Width: 270mm; Height: 300mm Weight: 21kg Power: 220V±22V, 50Hz±1 Hz Environment temperature: 5℃-35℃
Main Technical Specifications	Accuracy of transmittance: ≤1% Accuracy of haze: haze≤0.5%, ≤±0.1%; haze>0.5%, ≤±0.3% Repeatability of transmittance: 0.5% Repeatability of haze: haze: ≤0.5%, 0.05%; haze:>0.5%, 0.1%
