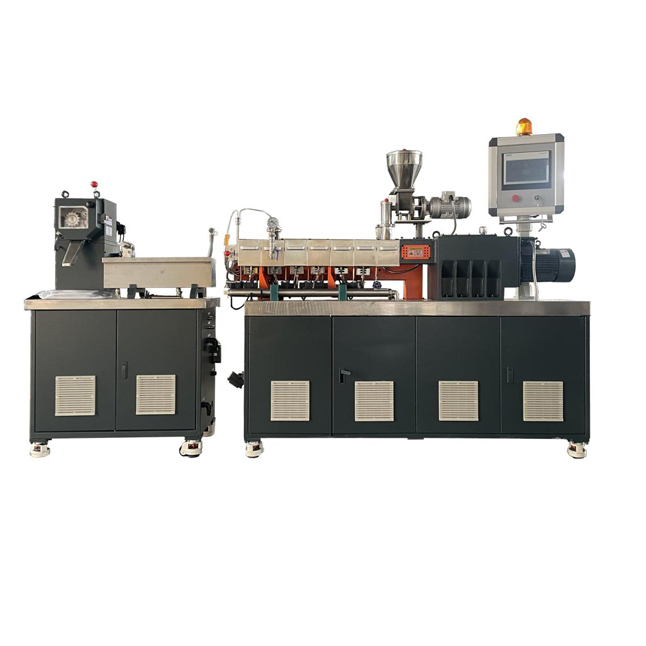

XHS-39D Lab Twin Screw Extruder

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Laboratory parallel twin screw extruder, is applied to the miniaturization production, experiment and teaching of filling, blending, modification and reinforcement of polymer materials.

The machine has the advantages of low material consumption, high efficiency, low cost and small floor area, which is very suitable for the research and development before production, formula synthesis, etc.

Technical Parameter

1. Screw Diam.: 21.7mm；

2. L/D＝40:1;

3. Screw: Alloy special tool steel，with feeding section, conveying section, compression section and mixing head，hard chrome polishing, superfinishing and other processes，Nitriding layer depth 0.4-0.7mm，Nitriding hardness HRC55 ~ 60

4. Barrel material: wear-resistant hard alloy；

5. Main motor power: 4kw (Siemens Bede AC motor);

6. Screw speed: 600rpm;

7. Main frame heating power: 3kw

8. Total installed power: 10kw

9. production capacity: 2-5kg (Depending on the process formula of the production material）

Material Required: 2-5kg (Depending on the process formula of the production material）
