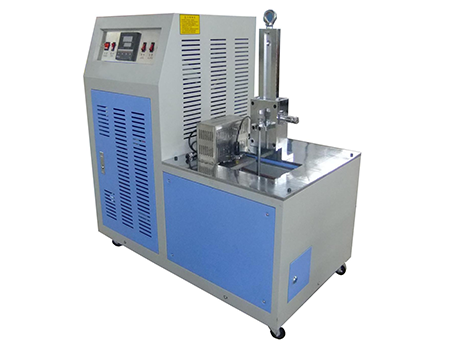

XHS-36 Low Temperature Brittleness Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

Low Temperature Brittleness Tester is used to determine the brittleness temperature, specimens are secured to a specimen holder using a torque wrench. The specimen holder is immersed in a bath containing a heat-transfer medium, which has been cooled. The specimens are struck at a specified linear speed and then examined for failures. The brittleness temperature is defined as the temperature at which 50% of the specimens would probably fail.

Test Standards

ISO 974

Product Features

Striking device and its accessories is made of XAR450 Germany anti-abrasion steel plate.

Thermal insulation material: use high density glass fiber cotton, insulation thickness of 80mm, ensure the temperature is constant during the testing .

Has mixing system to let temperature in low temperature chamber keep uniformity.

Has feet wheel for moving machine easily.

Heating system use stainless steel heating tube.

The cooling compressor use Italian brand aspera.

PID Temperature controller to control temperature accurately.

Technical Parameter

Specimen clamp	clamp type A specimen 15 pcs, clamp type B specimen 5 pcs
Striking device	Type A and Type B.
Impact speed	2000±200mm/s
Specimen dimension	A: Length: 20.0±0.25mm, Width: 2.5±0.1mm，Thickness: 2.0±0.1mm B:Length: 31.75±6.35mm，Width: 6.35±0.51mm，Thickness: 1.91±0.13mm
Size of cooling working chamber	180×570×150（mm)
Temperature range	-70℃- 0℃/ -80℃-0℃
Temperature fluctuation	±0.5℃
Temperature deviation	≤±0.5℃
Temperature uniformity	±0.5℃
Cooling speed	To lowest temperature need about 2 hours
Refrigerant	R404A
Power Supply	220V, 50HZ/60HZ, 4000W
