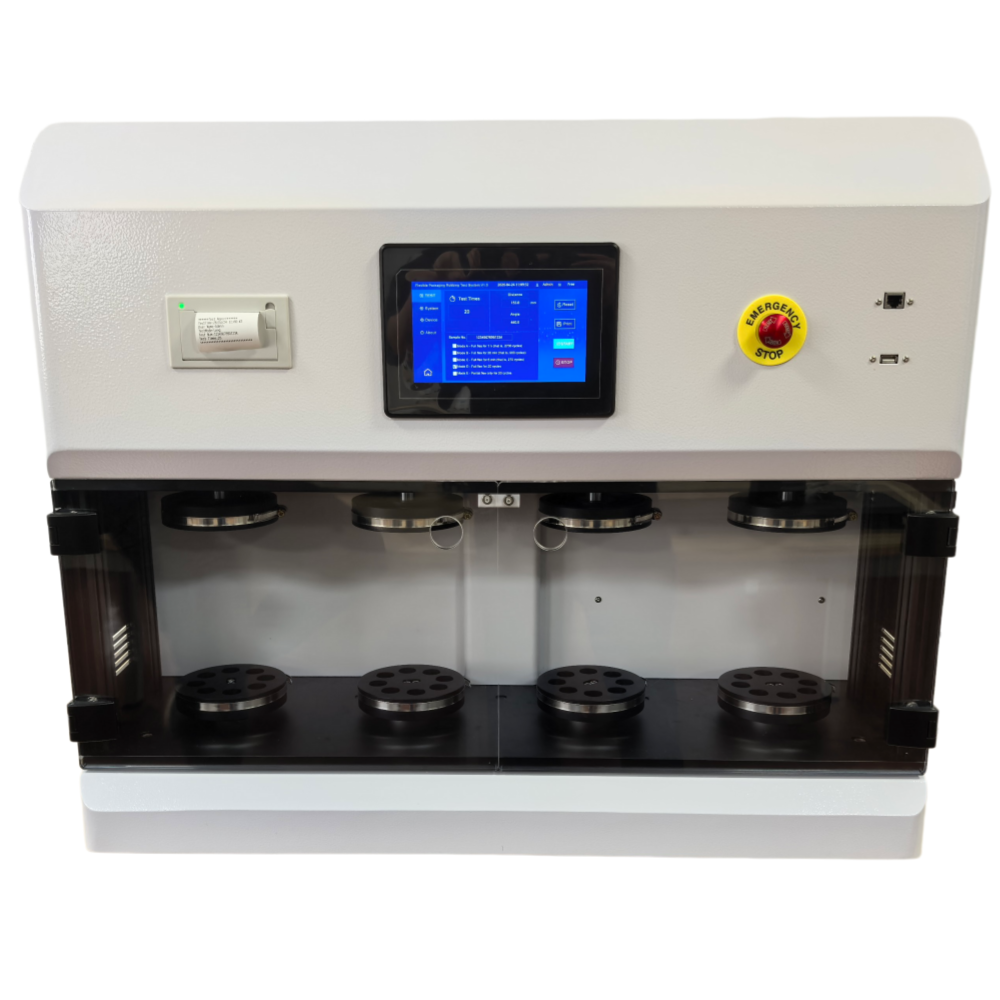

XHS-60 Gelbo Flex Durability Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Flex Durability Tester is professionally applicable to the determination of flex durability of flexible films, composite films and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability can be obtained by measuring the changes in number of pinholes or barrier properties after test, which can provide quantitative basis for package design and practical usage.

Test Standards

ASTM F392

Product Features

1. This equipment features five standard test modes and is equipped with four independent sample stations, supporting the operation of various test condition combinations. It allows for quick switching between long and short strokes, significantly enhancing testing efficiency and flexibility.

2. Driven by a high-performance servo motor, it boasts precise control and reliable positioning, effectively ensuring the repeatability and accuracy of the testing process.

3. The system is equipped with a dual security protection mechanism, incorporating both hardware and software, and features an intelligent automatic reset function, comprehensively ensuring operational safety.

4. The equipment adopts a microcomputer control system, equipped with a high-definition LCD touch screen, combined with a menu-based interface and a PVC operation panel. The interface is intuitive and easy to operate, allowing users to quickly set up and execute test tasks.

Technical Parameter

Testing Station	4
Testing Speed	45 cpm
Test Model (Built in)	Condition A (2700 cycles), Condition B (900 cycles), Condition C (270 cycles), Condition D (20 cycles), Condition E (20 cycles partial flex), Condition F (0~20000 cycles)
Flex Angle	440°/400° (Settable)
Stroke	155mm/80mm
Specimen Size	280 mm x 200 mm
Dimension	860 mm (L) × 460 mm (W) × 720 mm (H)
Weight	95kgs
Power Supply	AC 220V, 50Hz, 1 Phase
Standard Confirguration	Host, Mini Printer, Clamps, USB Ouput
