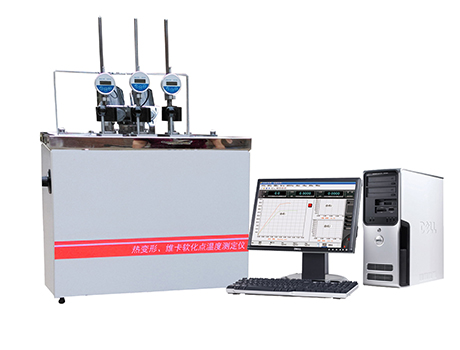

XHS-15A Vicat Softening Temperature and HDT Machine

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

The XHS-15A thermal deformation, Vicat softening point temperature tester is mainly used for the determination of temperature of thermal deformation and Vicat softening point to nonmetallic materials(such as plastic, rubber, nylon, electric insulating materials, etc.). It is the ideal testing tool for chemical industry enterprises, research institutes, colleges and so on. It adopt computer controlled.

Test Standards

GB/T 1633, GB/T 8802, GB/T 1634, ISO 2507, ISO 75, ISO 306, ASTMD 1525, ASTMD 648

Product Features

1. Computer collects temperature fluctuation and controls overall process, real time displays temperature, deformation curve and test time, CRT color curve display, prints the test result automatically.

2. The software adopts menu operation, which makes operation of users more practical.

3. Digital process, computer display real-time temperature, deformation and test time at the same time, which makes the system more reliable.

4. Report forms can be automatically compiled and meet with the requirements of customer.

4. Adopt dial gauge to measure deformation, more accurate than adopting displacement sensor.

6. Multi safety protection, mechanical over temperature protection, software over temperature protection, auto stop after test complete, user password protection.

7. Adopt advance PID technology and photo electric technology to control temperature raise, ensure error of heating speed is less than 0.5C

Technical Parameter

Temperature Control Range	Room Temperature-300C
Max Temperature Error	±0.5C
Heating Rate	(120±10)C /h [(12.0±1.0)C/6min] (50±5)/C /h [(5.0±0.5)C/6min]
Test Station	3
Deformation Measurement Method	High Precision Dial Gauge
Deformation Measurement Range	0-10mm
Max Deformation Error	±0.005mm
Resolution of Deformation	0.001mm
Sample Span	64mm, 100mm
Thermal Expansion Coefficient of Sample Frame	<0.005/100C (important)
Heating Medium	Methyl silicon oil
Cooling Method	Natural Cooling or water cooling below 150C, Natural Cooling Above 150C
Power Supply	220V, 50Hz, Single Phrase
