This machine is suitable for the determination of the shear rate of plastic and polymer materials, under certain temperature conditions, under the action of shear stress, the flow property of the melt was measured. Include apparent viscosity of thermoplastic plastics and apparent viscosity of thermosetting materials.

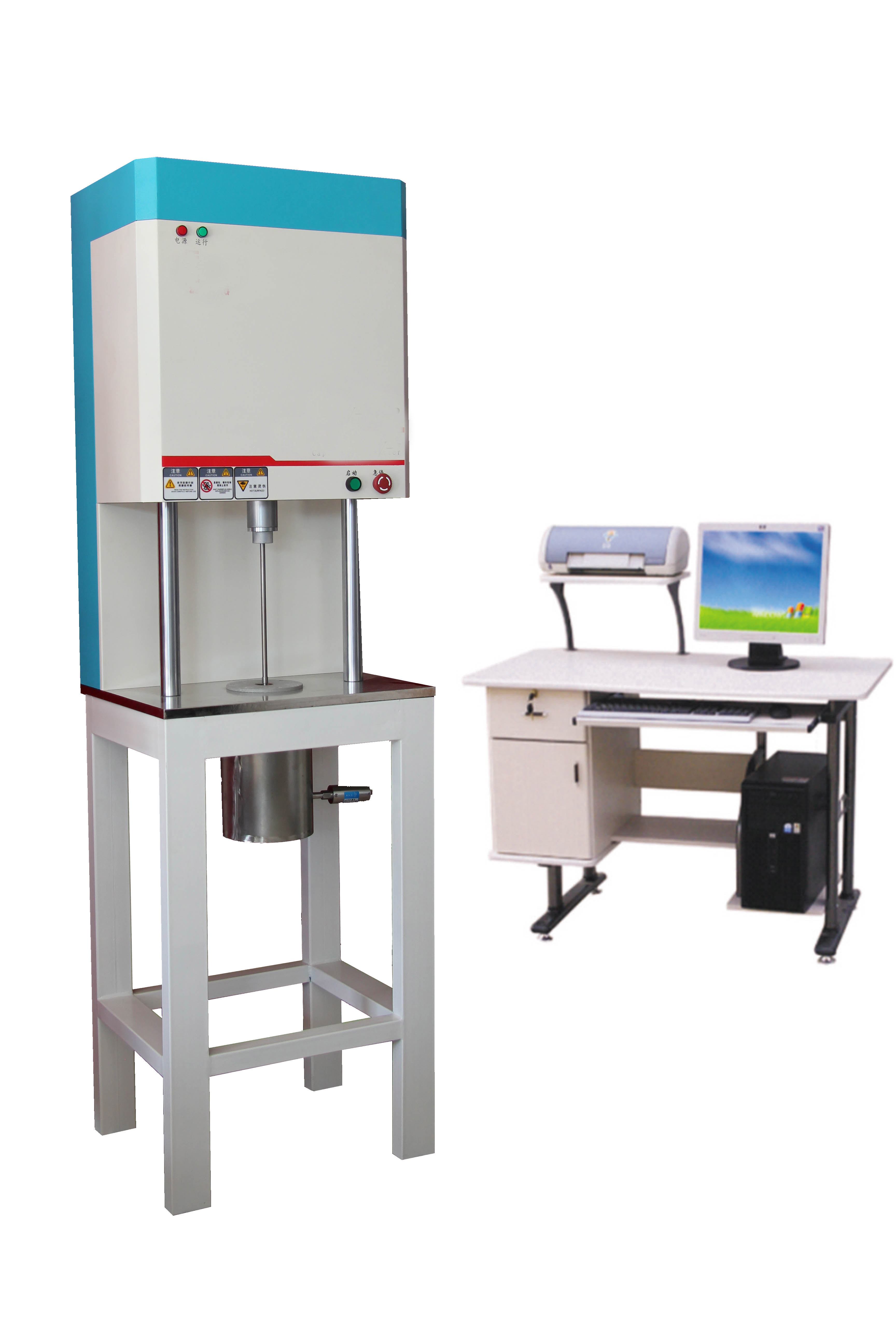

The rheometer is intelligent capillary rheometer, it can work under constant pressure, constant speed and constant temperature, different heating rates, different temperature, different shear rate conditions, the software automatically measure the parameters of the detection of the different plastic under different die environment pressure, temperature, speed and so on. Software automatically draw the curve, and data storage, printing, etc

Can be customized according to user requirements of different specifications (low temperature, high temperature, different pressure, different material rod diameter, etc.) models.

Constant velocity shear test: to measure shear stress and shear rate curve, and shear viscosity and shear rate curve.

Constant pressure shear test: to measure shear viscosity and shear rate curve.

Step shear rate test: according to the requirements of the user can set different shear rate, which measured shear force as a function of shear rate, and shear viscosity and shear rate curve, and in the process according to the curves to determine the melt fracture and melt the minimum flowing pressure and shear rate.

Flow / non flow measurement: measuring the relationship between viscosity and temperature, and can accurately determine the minimum flow temperature.

Melt fracture and flow instability are studied, including melt fracture and melt fracture.

Temperature range: room temperature -400℃（Can be customized according to user requirements, the price is negotiable）

Heating rate: 1-10℃/min, Continuous adjustable, and can be fast heating up

Temperature measurement display accuracy:  0.1℃

Pressure range: 1-50MPa±0.5%（Can be customized according to user requirements, the price is negotiable）

Maximum driving force: 50KN（Can be customized according to user requirements, the price is negotiable）

Pressure measuring accuracy: ±0.5%FS

Pressure resolution: 0.1Mpa

Speed range: 0.001-500mm/min

Deformation measurement accuracy: ±0.5%FS

Plug head diameter: φ12 mm（Can be customized according to user requirements, the price is negotiable）

Plug area:113.04mm2

Outlet die size: Ø 1×5, Ø 1×10, Ø1×20, Ø1×40（mm×mm）（Can be customized according to user requirements, the price is negotiable）

Material of material: tungsten carbide

Power Supply: 220V, 50Hz,Power <1000W

Outline dimension: 600×410×2100mm
