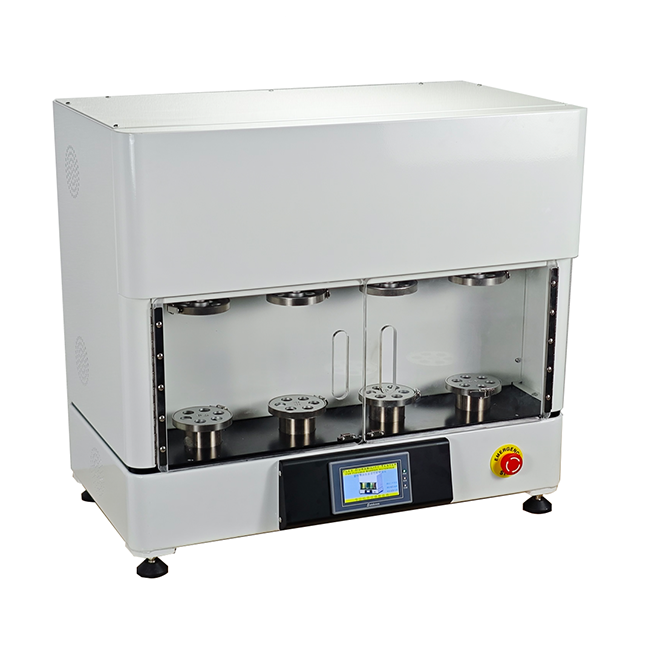

XHS-60 Gelbo Flex Durability Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Gelbo Flex Durability Tester is professionally applicable to the determination of flex durability of flexible films, composite films and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability can be obtained by measuring the changes in number of pinholes or barrier properties after test, which can provide quantitative basis for package design and practical usage.

Test Standards

ASTM F392

Product Features

Servo motor drives the rotation angle of the rotating disk, with precise angle control

Servo motor, combined with ball screw and linear guide, drives the lifting disc to rise and fall smoothly, with precise stroke control

Transparent protective door isolates the testing area for easy observation of the testing operation status

Long/short stroke flexing mode can be selected

Color touch screen+PLC control

Technical Parameter

Testing Station	4
Testing Speed	45 cpm
Test Model	Condition A (2700 cycles), Condition B (900 cycles), Condition C (270 cycles), Condition D (20 cycles), Condition E (20 cycles partial flex), Condition F (0-20000 cycles)
Flex Angle	440°/400° (Settable)
Stroke	155mm/80mm
Test Mode	Long Stroke/ Short Stroke/Self Define
Specimen Size	280 mm x 200 mm
Dimension	770mmx460mmx720mm
Weight	100kgs
Power Supply	AC 220V, 50Hz, 1 Phase
