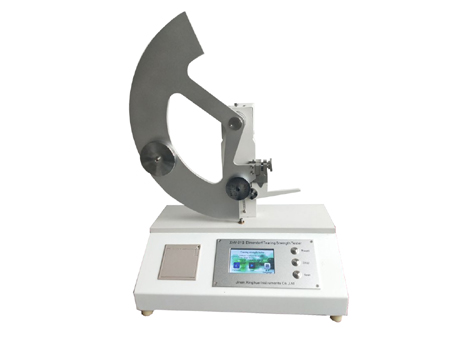

XHV-01B Elmendorf Tearing Strength Tester
Product Category:Plastic and Rubber Testing Equipments
Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC,
Waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile
and non-woven, etc.
ISO6383/2-1983, GB11999-89, ISO1974, TAPPI414, GB455, ASTM D1922
High Accuracy, resolution can reach 0.1mN, ensure testing accuracy is within ±1%, user can use weights to verify the test results.
Release the pendulum bob automatically, high testing efficiency.
Color touch screen operation system.
Check or delete the testing records randomly.
Micro-printer, fast and clear printing.
Calculate, count and print the testing result automatically.
Can be connected to PC and output results with software.
User can calibrate the machine with our equipped weights easily.
Testing range | 10-64000mN |
Resolution | 0.1mN |
Testing accuracy | ±1% |
Tearing force arm | 104±1mm |
Tearing initial angel | 27.5°±0.5° |
Paper clipper distance | 2.8±0.3mm |
Specimen cut length | 20±0.5mm |
PC Connection | USB, RS 232 |
Printer | Thermal Printer |
Dimension | 450×330×440 mm |
Weight | 20 Kgs |
Power | 220V, 50Hz |
