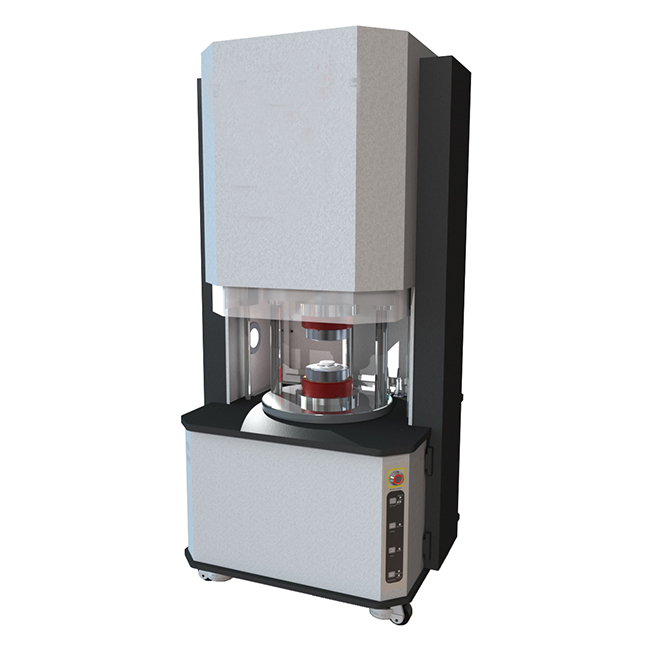

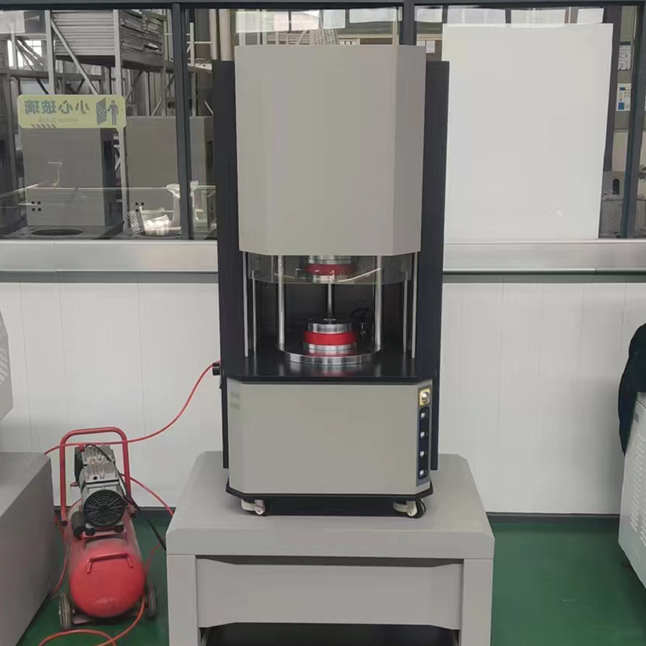

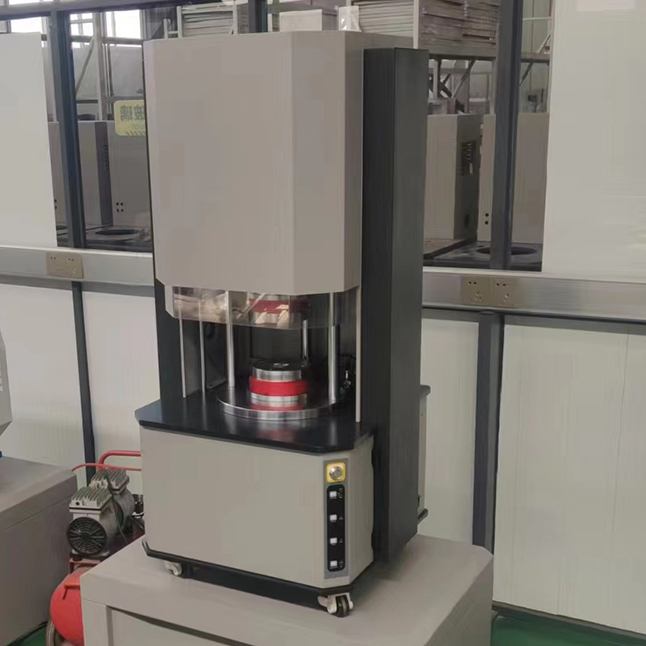

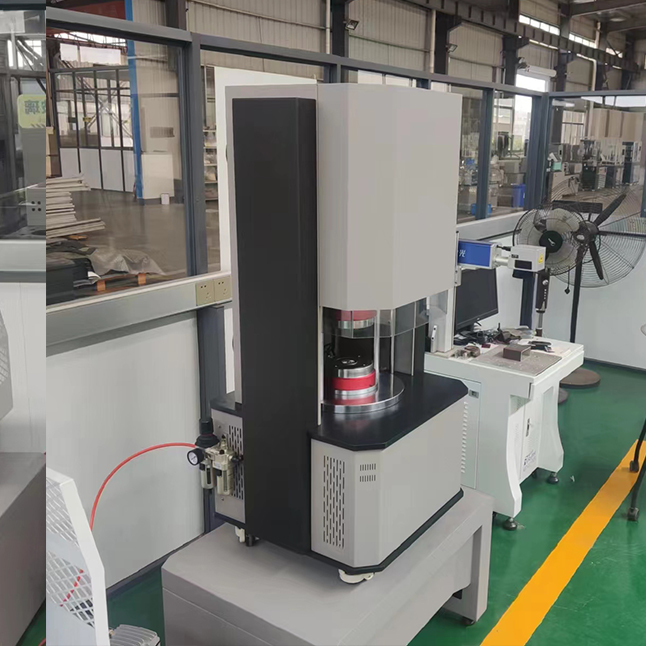

XHS-37B Rubber Testing Rheometer With Rotorless Curemeter

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

Rubber Rotorless Rheometer is suitable for testing the variation of shear modulus when raw rubber is vulcanized. The shear modulus is proportional to the crosslink density. So the results reflect the changes in the degree of crosslink during vulcanization. So that we can measure the parameters like curing speed, curing time and sulfur regeneration.

Test Standards

ASTM D5289, ISO 6502

Product Features

1. High precision sensor: 0 - 20N.m, Resolution: 0.001NM.

2. Control system: adopting computer control + Integrated circuit for data collection, storage, processing and printing test results and curve processing, the default time to extend or shorten the testing process, curve, history curve matching, and other functions.

3. The rotation system: Panasonic servo motor system + amplitude regulator

4. The temperature control system: adopting intelligent digital temperature control instrument, Automatism adjust PID control parameters in real time.

5. Data transmission: USB transmit.

6. Display mode: TY curemeter test software,computer monitor display.

7. Mold core: Cr6wv material, high strength and abrasion resistance.

8. Lighting system: LED light source, mold opening automatically turns on the light, mold closing automatically turns off the light.

9. Protection system: 5mm acrylic protective cover, which opens or closes with command automatically. Cover will close when power off to keep hands safe. Die closing must use the physical keys on the device side, in case of wrong operation.

10. Intelligent software: provide a powerful data query function, user-friendly design, convenient and fast operation.

Technical Parameter

Temperature range	RT－200C
Temperature measurement accuracy	≤±0.5C
Heating rate	RT-100℃<5min
Temperature resolution	0.01℃
Torque range	0－20N.m
Torque resolution	0.001N.m
Cavity frequency	1.7Hz
Amplitude	±0.5º/±1º (±3º optional)
Environment temperature	0-35℃
Working humidity	<80％
Vulcanization time setting range	1-300min
Pressure	0.4-0.6MPa
Power supply	220V±10%，50/60Hz
Power	800W
Dimension	660×580×1300mm
Weight	260Kg
