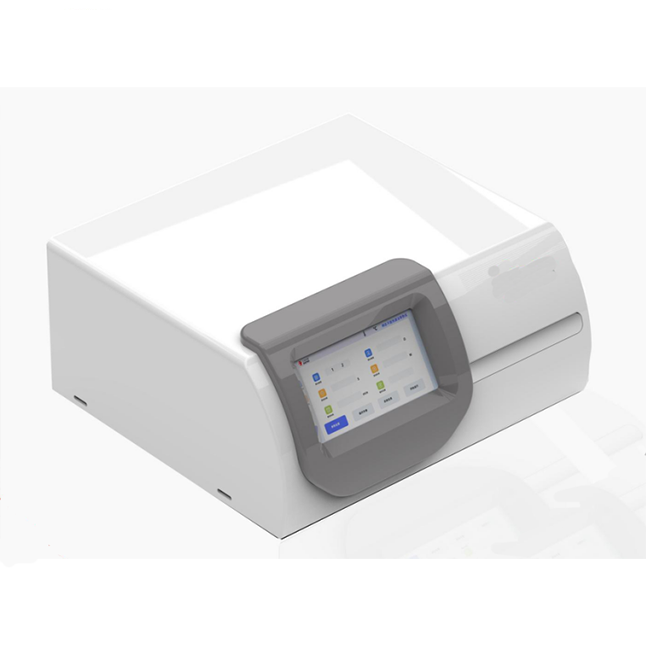

XHS-05ST Thermal Conductivity Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

Transient method (transient plane heat source method) thermal conductivity tester, used to test the thermal conductivity of materials, based on ISO 22007-2:2008, GB/T 32064-2015, GB/T42919.1-2023 and other standards meet the testing requirements for different forms of materials, such as liquids, solid blocks, pastes, powders, films, etc. The testing time is short, with each sample testing time ≤ 160S; High testing sensitivity, up to 0.00001.

Test Standards

ISO 22007-2:2008, GB/T 32064-2015, GB/T42919.1-2023

Product Features

1. Digital control, higher accuracy:

Due to manual power adjustment and insensitive control after multiple uses of the benchmark, there may be slight deviations in the later test data. Updating control components, digital control, and precise output power greatly improve the accuracy, repeatability, and equipment lifespan of test data

2. Program upgrade, automatic testing:

The program has been completely upgraded, and a single sample can be automatically implemented

Multiple cycles of testing, results automatically saved

3. Software upgrade, specific heat test:

In order to further study the characteristics of different materials, the software has added a specific heat capacity testing function. Specific heat capacity refers to the ability of an object to absorb or dissipate heat. The larger the specific heat capacity, the stronger the object's ability to absorb or dissipate heat

Technical Parameter

Thermal Conductivity Measurement Range	0.00001—50W/(m*K)
Temperature Measurement Range	-30℃—200℃
Testing Probe	Probe 1 for testing film Probe 2 for testing pad, grease
Sensitivity	0.0001W/（m*k）
Accuracy	≤±2%
Repeatability	≤±1%
Test Time	≤160S
Power Supply	220V, 50Hz, 1 Phase 300W
