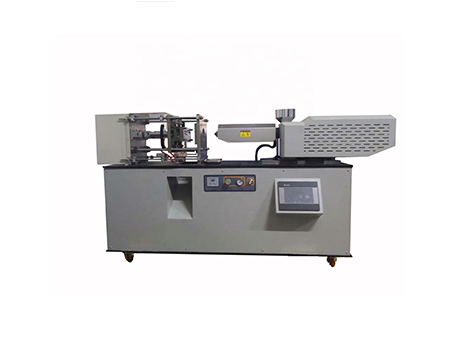

XHS-39A Lab Injection Molding Machine

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Lab Injection Molding Machine description: The machine used for the production of a microfilm machine and improved, with a small, mobile and strong, suitable for the production of classroom teaching and small sample. The product includes mold clamping member, sol injection member, body, heating systems, control systems and charging device. With simple structure, convenient operation, no noise pollution; uses 220V voltage, can use any electric field, limited by industrial electricity.

Technical Parameter

Control method	PLC(touch screen)HMI
Material Feeding Torque	105 N.M (motor control+ reducer)
Pressure	≥0.8Mpa
Displacement resolution	0.1mm
Displacement range	0-70mm
Material Feeding Speed	1-130rpm
Injection stroke	70mm（Excluding Mould）
Injection force	About 1800kg
Injection Weight	Max 30g
Locking Force	6T
Max Temperature	Zone 1 and 2 area, 3 area360°C
Power/Full Load	Single Phrase AC 220V±10%；50HZ；2200W
Screw Diameter	20mm
Column Span	280mmx186mm
Dimension	1700mm×500mm×950mm
Weight	380kgs
