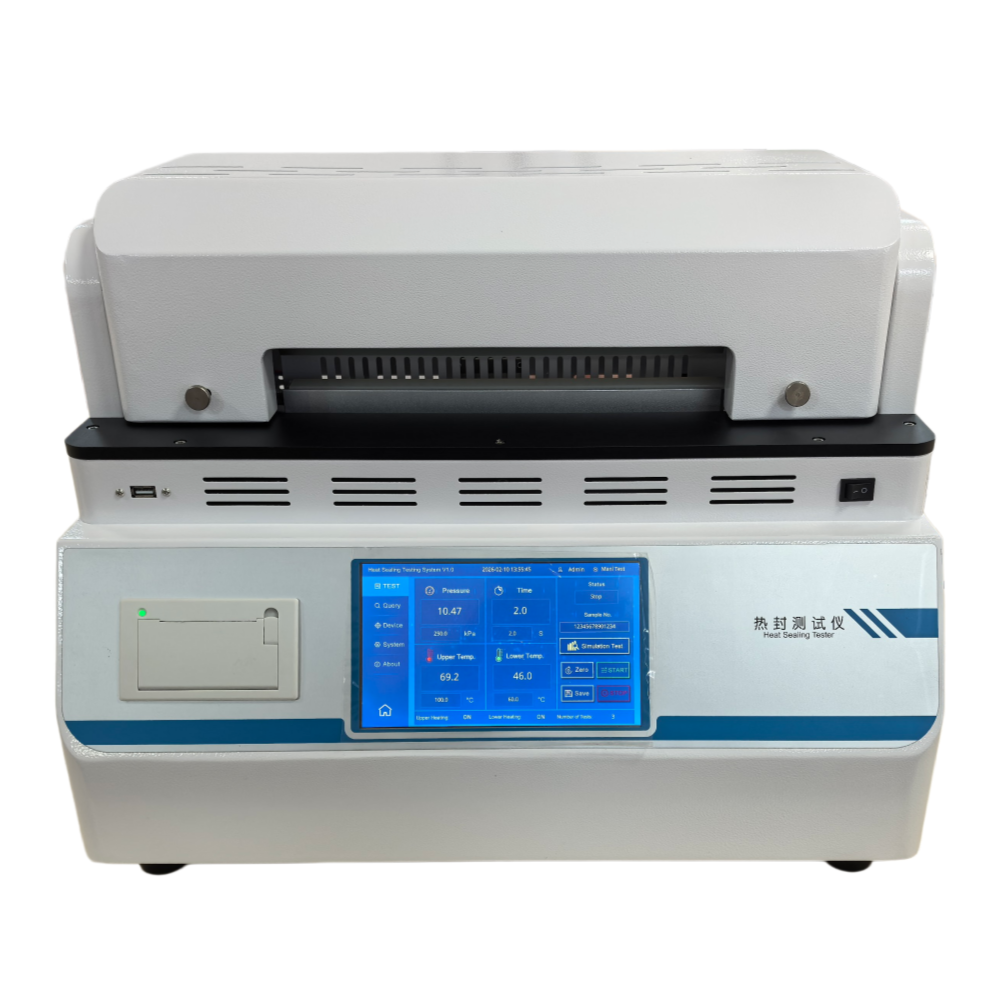

XHS-14T Heat Seal Tester for Plastic Packaging Material Testing

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

Heal seal capacity is one of most important performance in plastic package. The XHS-14T Heat Tester requests and takes heat-press seal method to test heat-seal temperature, time and pressure of plastic film material, soft packaging laminated film and other laminated film.

Test Standards

ASTM F2029, QB/T 2358(ZBY 28004),YBB 00122003.

Product Features

1. Industrial-grade high-definition color resistive touch screen, featuring a menu-driven interface, facilitating user control and display of real-time experimental data;

2. The heat sealing temperature is controlled using digital PID, effectively improving the control accuracy and heating rate of the temperature;

3. The aluminum-encased, armor-style heat sealing head design ensures uniform heating across the entire heat sealing surface;

4. The design of the lower-mounted dual-cylinder synchronous circuit ensures stability during instrument operation and effectively avoids pressure fluctuations caused by heat;

5. Both the upper and lower heat sealing heads can be independently temperature-controlled, featuring an extended heat sealing surface design, catering to users' needs for testing large-area samples or multiple samples simultaneously;

6. Support customization requirements for various hot cover formats to meet the personalized needs of different customers;

7. With both automatic and foot-operated test start modes, as well as a burn-resistant safety design, user convenience and safety can be effectively ensured;

8. All system components are sourced from world-renowned brands, ensuring the accuracy and stability of the system;

9. Imported high-speed and high-precision sampling chips ensure the real-time and accuracy of test data;

10. Multi-level user permission settings, test data integrity, and other functions meet GMP-related testing requirements;

11. Support quick viewing of historical data;

12. The equipment is equipped with a micro printer to print test data in real time

Technical Parameter

Seal Temperature	Room temperature-300℃
Temperature Control Accuracy	Within ±0.5℃
Temperature Resolution	0.1℃
Dwell Pressure	100Kpa-800Kpa (real time display sealing pressure) Two pressure control method: 1. Air Cylinder Pressure Control 2. Pressure accoreding to sealing area)
Dwell Time	0.1s-999.9s
Heating Mode	Single heating surface and double heating surface (Separate Control)
Seal Surface	300 mm x 10 mm (customization available)
Air Supply Pressure	0.7-0.8Mpa
Port Size	6mm Diameter
Dimension	550mm (L)×350 mm (W)×450 mm (H)
Weight	30Kgs
Power Supply	AC 110V/ 220V 50/60Hz
Standard Configuration	Mainframe, Pedal Switch, Air Pipe , Mini Printer
Customers will need to prepare for gas supply.
