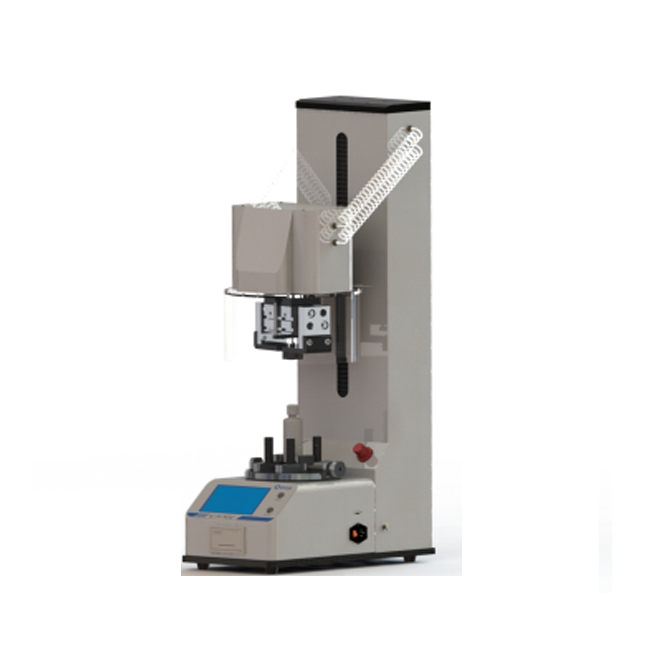

he application torque and removal torque of caps or closures of bottles, spout bags and flexible tube packages are important online and offline production parameters for the manufacturers, they may influence the transportation and consumption of the products. XHS-16D Digital Torque Tester is the first generation of automatic torque tester with manipulator, which is one professional testing instrument that can be used to measure the application torque and removal torque of the caps of bottles, spout bags and flexible tube packages., featuring great stability and high precision, is an indispensable testing instrument in manufacturing process.

ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034, GB/T 17876

Dual Test Modes & Automatic Test with Manipulator

Dual test modes including application torque test and removal torque test

Innovative patented manipulator technique supports automatic gripping, opening and fastening, which minimizes the error caused by manual operations and improves the testing accuracy and repeatability

Gripping force, fastening force and turning speed of the cap can be adjusted freely

Automatic gripping manipulator with deviation less than 0.01Nm, much better than manual fastening

Intelligent designs of overload protection, automatic zeroing and error alert for safe test operation

Manual test or automatic test can be selected.

High Testing Accuracy & Low Testing Lower Limit

Specimens with torque value lower than 0.05Nm is testable. The testing resolution is as high as 0.001Nm, providing high accuracy and good repeatability.

The peak value can be maintained automatically, which ensures the recording of the accurate test results

Automatic judgement of peak value meets the testing requirements for various specimens

Components and parts are supplied by world well-known manufacturers, which guarantee the stable performance

Imported pneumatic control system with ultra-long service life and ultra-low failure rate ensures the testing accuracy.

New Patented Intelligent Touch Operating System

Industrial grade touch screen, one-button operation, user-friendly interface, remote upgrade and maintenance

Chinese and English languages can be selected

Test curves are displayed in real time. Intelligent data statistics supports quick review of test results.

Automatic data storage and power failure memory functions

Historical data can be reviewed and printed easily

Storage up to 199 test records

Test data is expressed in multi international units for reference and comparison

Multi-level user privilege management, log in with password

Micro-printer print results

USB data ports for data exporting and data transfer (optional)

The instrument conforms to the requirements of GMP (optional)
