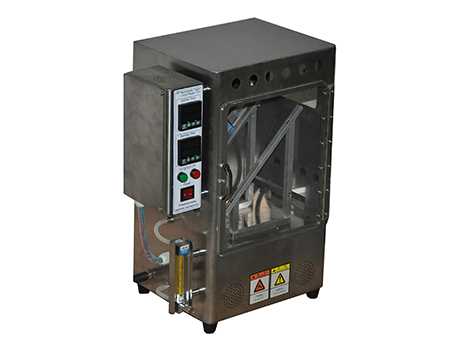

XHS-19 SPI Vinyl Plastic Film Flammability Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Vinyl Plastic Film Flammability Tester is suitable for testing the flame retardant property of polyethylene plastic film materials. The testing scope is mainly non-rigid and unsupported polyethylene plastic film materials, including transparent, translucent and opaque materials.Includes flat, convex, cast or surface-treated materials.

Principle:

Under prescribed conditions, sample with fixture clamping, the Angle of 45 ° inclined to put, specimen ignition, record of sample spacing on 45 degrees of bevel to 6 'burning time, burning rate to calculate sample.

Test Standards

（CPSC）16 CFR Part 1611

Technical Parameter

Project	Specification
Test chamber	30cmX25cmX37cm,There are five 20mm air holes on each side of left and right sides
Sample holder	45°
Sample fixture	Length 11 ", width 4 15/16", slot width 1 1/2 ", 1 "end bending length, width of 3 7/8", bending Angle 45 °
Mark line spacing	6”
Distance of burner from sample surface	9/16”
Flame length	1/2”
fuel gas	Butane
Sample size	3”x9”
Volume(WxDxH)	46x29x52cm
Weight(about)	20Kg
Power source	AC 220V 50Hz 3A
