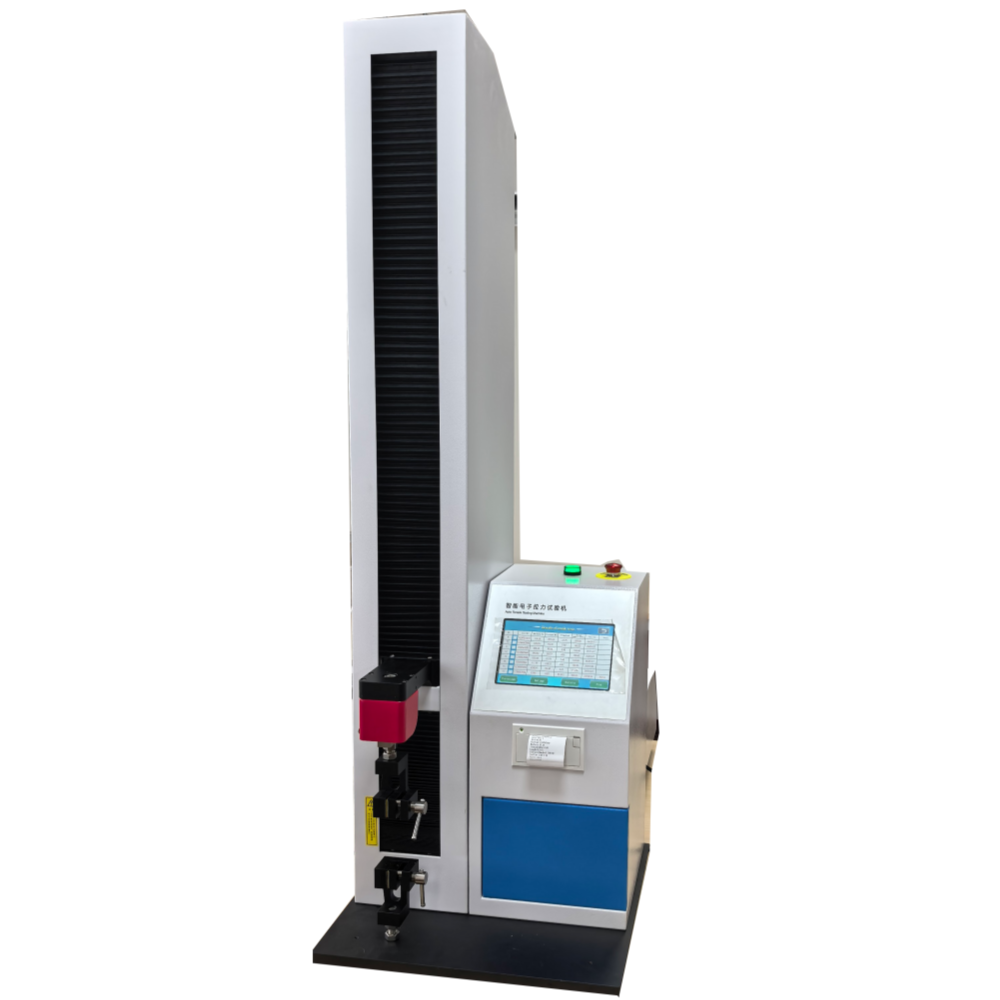

XHL-02S Tensile Strength Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Product Description

Auto tensile Tester is professionally applicable to the determination of force properties of various flexible packaging materials, with high precision (0.5% of full scale) and multiple test ranges. The instrument is designed with different independent test modes and could perform tests at different test speeds to meet various test conditions. Intelligent software facilitates to operate the instrument and provides data analysis and comparison functions.

Test Standards

This instrument conforms to various national and international standards as follows:

ISO 37, ISO 1924/2, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T4850-2002, GB/T12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ASTM D5748, JIS P8113, QB/T 2358, QB/T 1130, ASTM D1876

Product Features

1	0.5% of full scale effectively ensures accurate test results
2	High stiffness structure
3	8 Touch Screen Operation
4	1000mm extra-long stroke satisfies the test needs of various materials with extreme elongation rate
5	Different test range of load cells and test speeds to meet different test requirements
6	The instrument is controlled by micro-computer with menu interface, large touch screen operation.
7	Intelligent designs of over-travel protection, overload protect, automatic position reset and power failure memory for safe test operation
8	Professional operating software support statistical analysis of group specimens, superposition analysis.
9	Connect professional software for uniform management of test results and test reports
10	Thermal Print can print related test results fast and clear.

Technical Parameter

Model	XHL-02S-A	XHL-02S-B
Load cell	500N
	(30N, 50N, 100N, 200N, 1000N, 2000N Optional Purchase)
Load Cell Brand	China Brand	USA Celtron Brand
Accuracy of Test Force	±0.5% of indication value
Force Resolution	0.001N
Driven Motor	Stepper Motor	Servo Motor
Ball Screw	China Brand	Taiwan HIWIN
Testing Speed	0-500mm/min (Adjustable)
Speed Accuracy	±0.5% of indication value
Displacement Resolution	0.01mm
Displacement Accuracy	0.5% of Indication Value
Grip Clamping Width	30mm (standard), 50mm (optional)
Stroke	1000mm (exclude grips)
Dimension	450mmx450mmx1380mm
Weight	75Kgs
Power Supply	220V±10V 50HZ
Standard Configuration	Main Frame+Tension Grip
Optional Grip	PC software+HP Computer, Pneumatic Tension Grip
