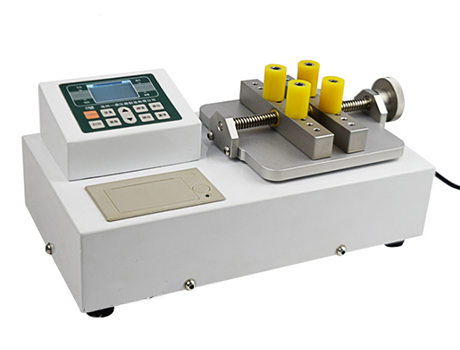

XHS-16 Bottle Cap Torque Tester

Product Category：Plastic and Rubber Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

Digital bottle cap torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Product Features

1. High precision, high resolution, quick sampling speed, full-screen display.

2. Adopting high precision torque sensor, with torque direction display.

3. Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.

4. Three units can be switched each other (N·m、Kgf·cm、Lb·in).

5. Real-time, peak, automatic peak three models of optional switch.

6. Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.

7. Peak holding, remove automatically function, remove time to set freely.

8. Large storage, can save 99 groups of test data.

9. Without automatic shutdown function, time can be set freely.

Technical Parameter

Type Index	With printer	P1	P2	P3	P5	P10	P20
	No printer	WP1	WP2	WP3	WP5	WP10	WP20
Measuring range / Division value	N·m	1.0000/0.0001	2.0000/0.0001	3.0000/ 0.0001	5.0000/ 0.001	10.000/ 0.001	20.000/ 0.001
	Kg·cm	10.200/ 0.001	20.400/ 0.001	30.600/ 0.001	51.000/ 0.01	102.00/ 0.01	204.00/ 0.01
	Lb·in	8.850/ 0.001	17.700/ 0.001	26.550/ 0.001	44.250/ 0.01	88.50/ 0.01	177.00/ 0.01
Precision		±1%
Peak Value Sampling Frequency		2000HZ
Hold diameter		9mm-165mm
Power		7.2V 1.2VX6 　Ni-MH Battery group
Charging Time		4～6 Hours
Continuous using time of battery		About 10 Hours
Battery life		≥300 times
Size		400mm×200mm×200mm
Net Weight		12KG
Power adapter		Input: AC 220V 50HZ Output: DC 10V 300mA
