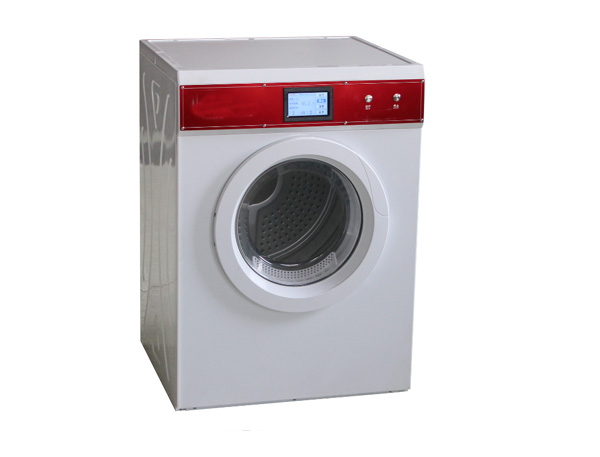

XHF-26 Tumble Dryer

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

Tumble Dryer is used for the test fo drying process and the drying procedures needed by other textiles ,which are prescribed in the standard textiles.

Test Standards

BS EN ISO 6330-2012, AATCC 135

Product Features

1. The microcomputer controls the drying temperature and automatically switches to cold air for heat dissipation before the end of the drying process.

2. Digital circuit, hardware control, strong anti-interference ability.

3. The instrument has low operating noise, stable and safe operation, and is equipped with a safety device for accidentally opening the door and automatically stopping, which is convenient and reliable to use.

4. The drying time can be freely selected, and the drying fabric material and quantity range are wide.

5. Single-phase 220V power supply, which can be used in any occasions like ordinary household dryers.

6. The maximum loading capacity can reach 10KG (rated 7KG), which can meet the requirements of large-scale and multi-batch experiments.

Technical Parameter

Drying mode	Front-loading, horizontal rotating cage
Temperature and Time	Settable in touch screen
Drum diameter	580mm ±10mm
Drum volume	100L
Rotating speed	50±3 rpm
Number of lifter	3 (120 °)
Rated capacity	10Kgs （Rated 7Kg）
Power	AC 220V 50Hz, 2000W
Dimension	600mm×650mm×850mm（L×W×H）
