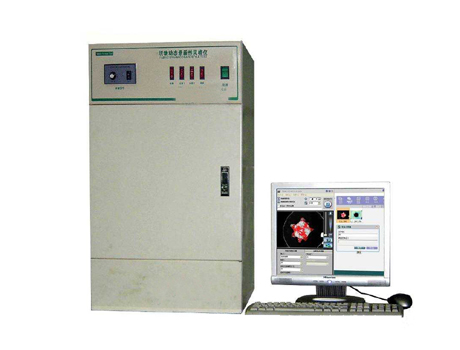

XHF-21 Fabric Drape Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

The XHF-21 Fabric Drape Tester is used for measuring all kinds fabric dynamic, static drape parameter: drape coefficient, Alacrity rate, curved surface waviness number and aesthetic feeling.

Equipped with CCD imaging system, dynamic and static images processing, offers a variety of charts and data statistication, analysis, storage and output. Specimens in all colors can be tested without changing background color.

Test Standards

ISO 9073-9, EN 9073-9

Technical Parameter

Working pattern	CCD imaging, full-automatic processing of images and data
Imaging sensor	CCD
Drape coefficient	0-100%
Drape	0-100%
Curved surface waviness number	0-100%
Live wave ratio	0-100%
Aesthetic factor	0-100%
Test speed	5-100r/min
Power source	AC110-220V 50Hz/60Hz
External dimension	460mm×460mm×780mm
Weight	50kgs
