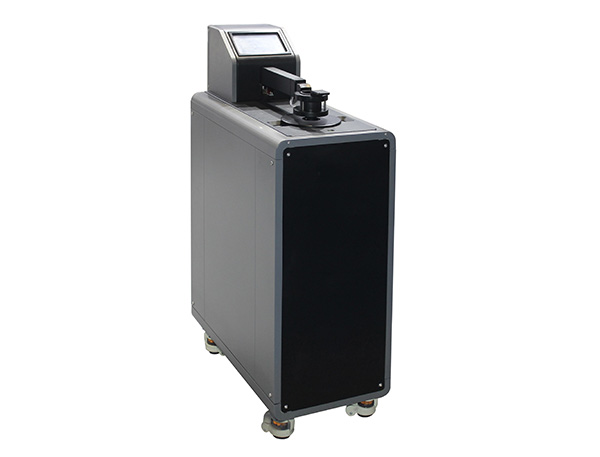

XHF-01B Automatic Air Permeability Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

XHF-01B Automatic Fabric Air Permeability Tester is used to test the air permeability of various woven fabrics, knitted fabrics, non-woven fabrics, industrial filter materials etc.

Test Standards

AFNOR G07-111, ASTM D 737, ASTM D 3574, BS 5’636, EDANA 140.1, DIN 53887, EDANA 140.1, EN ISO 7231, EN ISO 9237, JIS L 1096-A, TAPPI T 251, WSP 70.1

Product Features

Wide measuring range of 0.8-14000mm/s at 20 cm² test area

Wide test pressure range of 1-2,400 Pa

Fast and simple sample pneumatic clamping test samples with a high percentage of side air.

LargeTouch screen control display for digital and graphic display of the test result.

Self-designed muffler to control the suction fan, quiet and mobile instrument, perfectly suitable for use in the laboratory and in the production area.

Adopt high precision imported sensor, test results is accurate.

Equip with standard calibration plate to calibrate machine quickly.

Automatic cleaning function of the orifice provides for stable test results.

Optional integrated software for evaluation and storage of the test results in XML format.

Works in accordance with all major test standards.

Fast test speed, can get test results within 30 seconds.

Technical Parameter

Test Pressure Range	1-2400Pa
Permeability ratio range	0.8-14000mm/s at 20 cm² test area
Specimen thickness	≤8mm
Measuring accuracy	≤±2%
Test area (Standard)	20 cm2
Test Area (Optional)	5cm2, 25cm2, 38.3 cm2, 50cm2, 100cm2
Test Units	mm/s, cm3/cm2/s, L/dm2/min, m3/m2/min, m3/m2/h, d m3/s, cfm
Calibration	Unique Calibration Board
Communication Interface	USB
Dimension	550x900x1200mm
Gross Weight	105kg
Power source	110V/220V, 50/60Hz
