XHF-41A Fabric Water Vapour Permeability Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

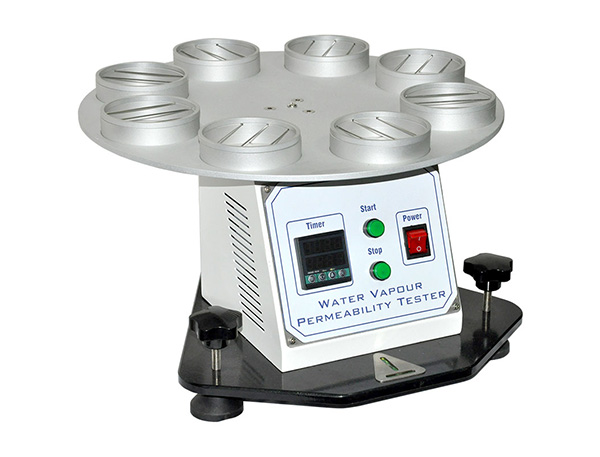

Water Vapour Permeability Tester, To determine the resistance of textiles and textile composites (particularly action wear fabrics) to water vapour penetration. The Water Vapour Permeability Tester consists of 8 containers with water reservoirs, a standard permeable fabric cover, sample holder ring and precision drive system.

Test Standards

BS 7209 , BS3424

Technical Parameter

Specimen	8 Pcs, diameter: 96mm
Inner dimension of container: diameter:	83mm, depth: 18.5mm
Weight of container: 120-150g/ group	120-150g/ group (Contain water)
Dishes	Aluminum, PCD 305mm
Rotation speed	about 2r/min
Testing Time	settable
Counter	LCD display, 0-9999h (Random Setting)
Dimension	440mmx530x330mm
Weight	28Kgs
Power	110/220V, 50/60Hz
