XHF-20 Automatic Pick Counter

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

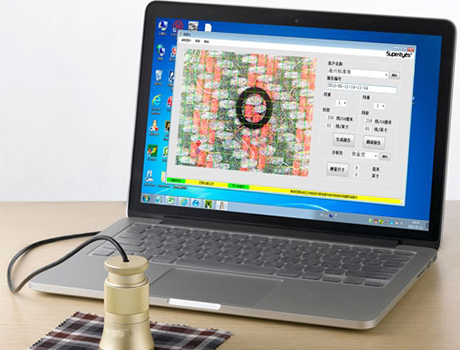

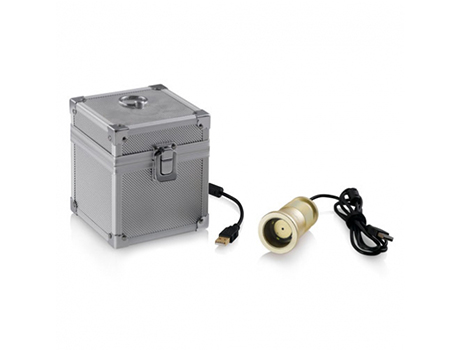

The eletronic pick counter is used to determine the thread density of woven fabric and loop density of knitted fabrics. Equipped with a portable high-precision camera to capture and magnify pictures of fabrics. The number of threads or loops on captured pictures can be counted easily on the screen of the computer by the software.

Test Standards

ISO 7211.2, ASTM D3755

Technical Parameter

Average analysis time	4S
Magnification	50 - 200X
Accuracy:	better than 99%
Density Measurement Range	50-400 Threads/Inch
Measuring direction	Vertical/Horizontal
Counting direction	Warp-wise/Weft-wise
Display mode	Thread/10cm and thread/inch
Light source	Adjustable LED lights
Interface	USB2.0
OS	Windows XP/7/8/10
Software	Special software snapshot, video recording, measurement, and etc.
Dimension	110mm x110mmx 130mm
