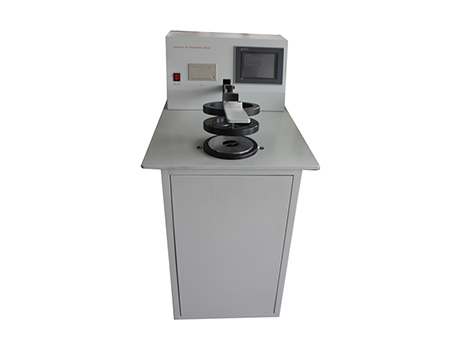

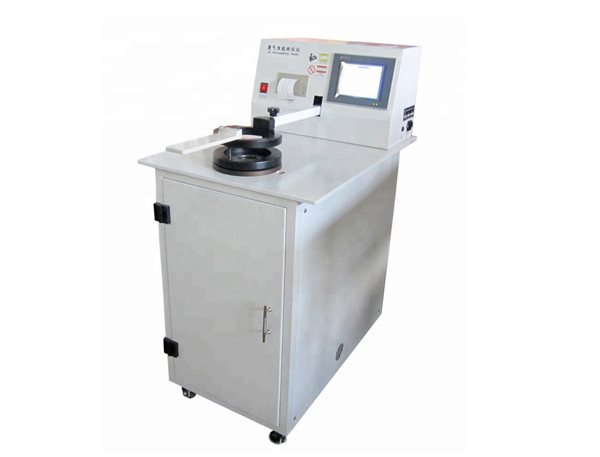

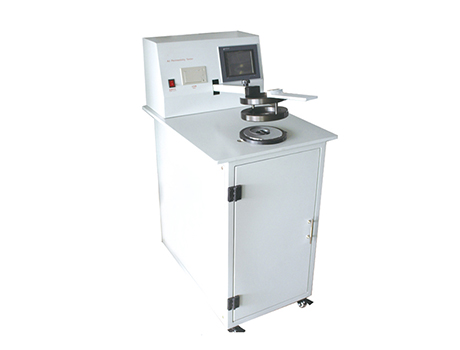

XHF-01A Automatic Air Permeability Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Product Description

XHF-01 Automatic Fabric Air Permeability Tester is used to test the air permeability of various woven fabrics, knitted fabrics, non-woven fabrics, industrial filter materials etc.

Test Standards

ASTM D737, ASTM D3574, AFNORG07-111, BS5636, DIN53,887,EDANA140.1, EN IS07,231, ENISO9,237, JIS L1096-A, TAPPI T251 and so on.

Product Features

1. More excellent anti-jamming, more excellent stability, more rapid data transference speed.

2. Adopt microcomputer control system, branded high accuracy pressure sensor, digital feedback and adjust air volume.

4. Automatic orifice plate replacement

5. Automatic follow, measure and display pressure difference of each point with high stability and repeatability.

6. All plates have been calibrated by-point in full testing range to let test data more accuracy.

7. All test data is displayed by large high-definition large color touch screen displayer, no need to calculate test result by hands.

8. Automatic converse air permeability rate and air permeability volume to improve test efficiency.

9. Large touch screen display and controller.

10. Adopt micro-computer control, insure the test data accuracy and test data can be saved and processed automatically.

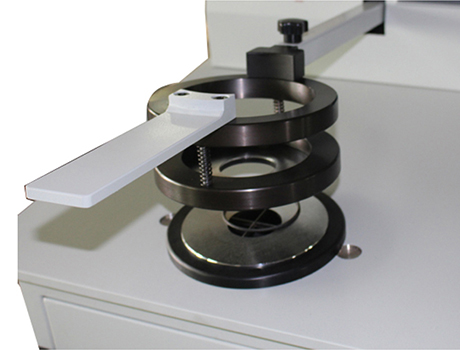

11. Special designed sample holder accomplish test in box and ensure the yarn without slip.

12. Equipped with the inner printer, test report can be printed anywhere.

13. Testing procedure can be set conveniently by the inner control panel.

14 With the function of saving data when power-down.

15. Professional software support to output results to PC.

16. Machine have self checking function, easy for maintenance.

Technical Parameter

Test Pressue	0-500Pa
Specimen thickness	≤8mm
Measuring accuracy	≤±2%
Test area (Standard)	20 cm2
Test Area (Optional)	5cm2, 25cm2, 38cm2, 50cm2, 100cm2
Test Units	mm/s, L/m2/s, L/dm2/min, cm3/cm2/s, ft3/ft2/min, m3/m2/min,m3/m2/h, dm3/s
Calibration	unique calibration board
Print	Thermal Printer or print from PC
Permeability ratio range	0.1-10000mm/s
External Dimensions	700x1000x1000mm
Gross Weight	100kg
Power source	110V/220V, 50/60Hz
