XHF-49B Downproof Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

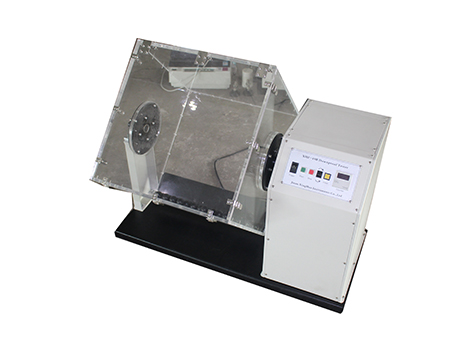

Downproof Tester is designed to test down-proof properties of fabrics. A rotating box which can rotate in forward and reverse, load the sample and Nitrile rubber balls rotary in specified speed to simulate the press, collision actions of using feather products . Result assessment by counting the number of particles passed or protruding from the fabrics.

Test Standards

FTMS T91 5530, IDFL 20-1

Product Features

High quality motor to make machine run quietly

Auto stop when reach preset value

Digital display

Put sample in and out through acrylic door

Technical Parameter

Inner Box Dimension	457x457x457mm (18 Inches)
Rotation Speed	48±2 r/min
Counting range	0-9999r
Rubber stoppers	24 pcs (total 0.57kg)
Instrument Dimension	850x780x670mm
Packing Dimension	1120x720x860mm
Weight	75kgs
Power Supply	110/220V±10%, 50/60Hz
