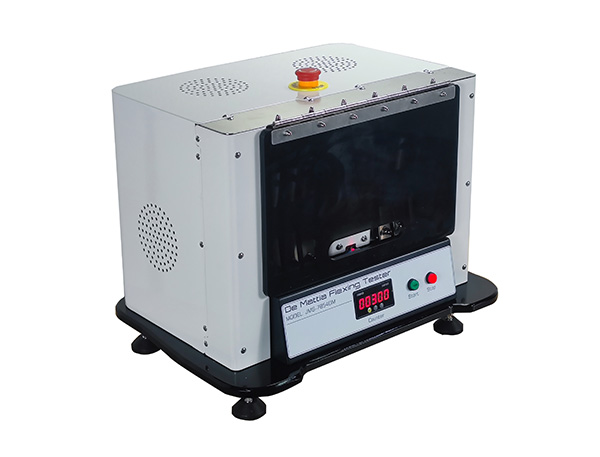

XHF-44B De Mattia Flexing Resistance Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

De Mattia Flexing Tester is used for the assessment of the resistance of coated fabrics to damage by repeated flexing under De Mattia method

Test Standards

BS 3424 P9, ISO 7854

Product Features

1. The new product modeling design concept makes the product structure compact, beautiful in appearance, and harmonious proportion;

2. Fixure and fixture seats and other parts are sandbladed and nickel -plated technology. Anti rust and beatiful.

3. Transparent protective cover, with electronic access control technology, open the protective cover instrument, stop running.

4.Equipped with an emergency stop button, you can quickly stop running when you encounter an emergency to protect the safety of personnel.

4. The method of holding the sample clamping method, the six -stage station is divided into two groups of linkage, which greatly improves the test efficiency.

5. Eccentricity to the re -driven mechanism, the structure is simple, the itinerary is stable, the operation is stable and reliable, and the operation is smoother and quieter.

6. Optimize the transmission structure, and the left and right sides are symmetrically used to carry the reciprocating mechanism with two straight slide rails, with high orientation excellent accuracy, smoother and quieter.

7. Circular ventilation system, strong fan with the body's heat sink pores, use air to oppose the principle of flow, quickly dissipate the heat, cool down the instrument for a long time, and ensure that the internal operation environment of the instrument is stable.

Technical Parameter

Clamps	6 Groups
Test Speed	5.0±0.2Hz (300±12r.min)
Clamp width	20mm
Travel distance	57±0.5mm
Distance between clamps	Max. 70mm±mm, Min. 13mm±0.5mm
Specimen dimension	(37.5±1)mm×125mm
Counter	LCD,0-999,999 Automatic Stop
Dimension	550mm×400mm×450mm
Weight	65Kgs
Power Supply	220V+10%, 50Hz
