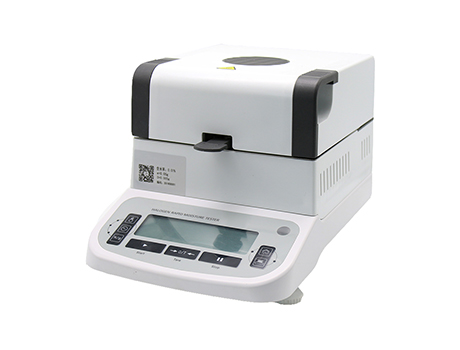

XHF-08-M Rapid Moisture Content Meter

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Product Description

Rapid Moisture Analyzer configures high precision weighing sensor and high efficiency halogen lamp heat device on the basis of electronic balances, to reach the rapid and accurate moisture determination. Halogen moisture analyzer is the reliable solution of determining your sample’s moisture content. This durable and affordable moisture analyzer profit from Tianjin D&T rich experience of manufacturing precise instruments and years of professional aknowledge for determination of moisture content.

This series is widely used in the scope of tabacco, papermaking, food, tea, beverage, grain, chemical raw materials, pharmaceutical raw materials, texture raw materials etc., testing the free moisture content of samples.

Product Features

High performance electromagnetic force sensor, the maximal capacity can reach 0.1mg readability, provide the best measured performance.

Rapid operation and intuitive user interface make users can quickly familiar with the operational process of equipment, one-key to start drying method..

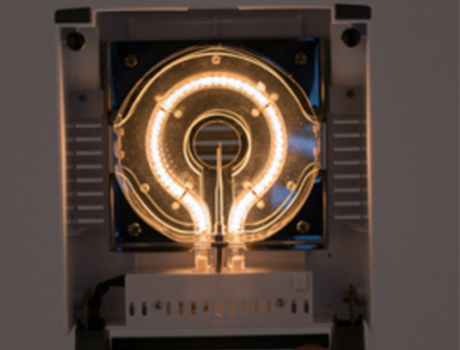

Rapid analysis, advanced technology of halogen lamp are the keys to ensure rapid heating and precise temperature control. The final measurement results can be obtained in the short time.

Always maintain accurate moisture results.

Moisture determination in the process of plastics processing.

Technical Parameter

Model Number		A	B	C
Max.capacity (g)		120		120
Capacity Readability (g)		120-0.005	120-0.001	120-0.0001
Repeatability (Standard Error)	>10g	±0.01%		±0.001%
	>2g	±0.05%		±0.005%
Operational Temperature Range (℃)		13~25
Calibration Way		Temperature calibration, External weights calibration		Temperature calibration, Internal weights calibration
Pan Diameter (mm)		Φ90
External Dimension (LWH mm)		310205200
Preheat Time (minute)		20-30
Baud Rate Options		300, 600, 1200, 2400, 4800, 9600
Display		LCD liquid crystal display		LCD liquid crystal display
Heating Temperature Range (℃)		60-200
Drying Process		Standard heating,
Moisture Display Mode		Relative Moisture
Stop Way		Automatic stop, Manual stop, Timing stop
Setting Time		0~99 minutes, interval 1 minute
