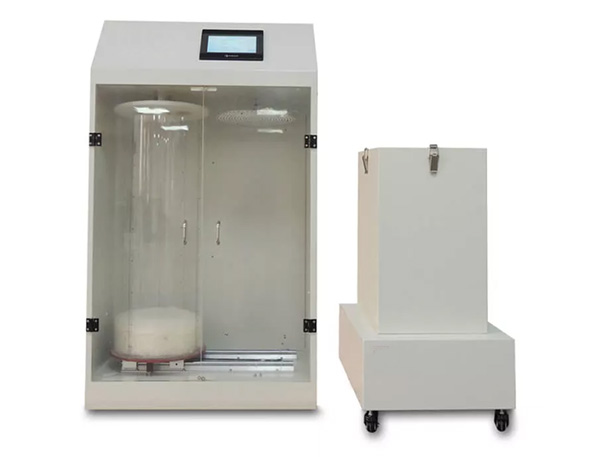

XHF-49C Feather & Down Filling Power Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

XHF-49C Feather & Down Filling Power Tester is used to measure the fluffy degree of down ,feather products and filling materials

Test Standards

GB/T 14272-2021, GB/T 10288-2016, IDFB Part 10-B, BSEN12130

Product Features

Color touch-screen display, man-machine dialogue, easy to operate.

The unique filter ventilation design,Blowing wool and wool location automatically switches, feathers will not be flying about, prevent harmful to operators.

The machine test speed can be set, suitable for different standards, the transmission structure adopt stepper motor system, make high accuracy of volume accurate.

Sensor with high precision, ARM32 bit microprocessors, 16 bit A/D acquisition precise induction pressure plate location,accurately calculate the test results, can be used multiple standards.

Automatic wind speed design system, ensure the fleeciness nature of the feather hair, make the measured data of each time has better veracity and repeatability.

Built in Printer for print test results.

Technical Parameter

Measurement accuracy	0.1mm
Measuring height	605mm
Measurement speed	1-600mm/min adjustable
Cylinder diameter	288 mm ( BS EN12130) (Standard) 240mm (Opational)
Weight Plate Mass	94.25g diameter 284mm ( BS EN12130) (Standard)
	68.4g diameter 240mm (Optional)
Weight of Specimen	(0.1-99.9)g can be set
Plate	128 Holes, Diameter 3mm
Blowing down time	1-999s can be set
Pressure down time	1-999s can be set
Testing Unit	cm³,in³, mm, L/kg, cm³/g
Power	AC 220V±10% 50Hz 150W
Dimensions	730×600×1230mm
Weight	125Kg
