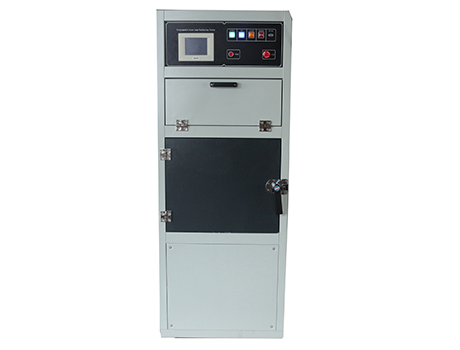

XHF-50B Xenon Weathering Machine

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Product Description

This xenon lamp weathering equipment is a comprehensive climate testing machine, can do climatic aging test and the light fastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition.

Test Standards

ISO, ASTM, EN, GB

Technical Parameter

Testing room D×W×H		400500400mm (80L)
index	Temperature of black panel thermometer	Room Temperature+10 °C~80°C (Adjustable)
	Uniformity of temperature	≤2℃
	Flunction of temperature	≤±0.5℃
	Humidity range	45% to 75%R·H adjustable
	Error of humidity	+2% ～ -3% R•H
	Dark, Exposure Time	0-9999H, adjustable
	Spray time	1 to 9999min, adjustable
	Spray pause time	1-999min, adjustable
	Irradiance	250-765W/m2/290-800nm (can be controlled) (also can select 300-400nm)
	Light source	Xenon lamp (air-cooled) 1 Pc
	Xenon lamp power	2.5 kw Life: 1000H, color temperature 5500K-6500K
	Efficient explosure area	1000cm2
Control system	Controller	OYO9216X imported big color touch screen controller
	Resolution	Temperature: ±0.1 degree / humidity: ±0.1R·H
	Sensor	Platinum resistance Pt 100Ω/mv
	Heating system	Independent system, nickel chromium alloy electric heating type heater (2KW×1)
	Humidity system	external boiler steam type humidifier, water level automatic compensation, water shortage alarm system, far infrared stainless steel high speed heating (0.75KW x 1) electric heating tube, P.I.D+S.S.R control
	Water cycling system	Water level indication, water recycling, spray pressure can be adjusted between 0.12-0.15Mpa.
	Solar Eye System	Detecting Irradiance and displaying Irradiance on the screen, automatic compensation Irradiance.
Material	Outside material	advanced spray color plate /SUS304 stainless steel
	Inside material	SUS304 stainless steel
	Sample shelf	SUS304 stainless steel, height is adjustable
	insulation	High density glass fiber cotton and high-pressure polyurethane foam insulation
Protection		Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection.
Power		AC 220V, 50Hz
Environmental temperature		±5+30 ≤85%R·
