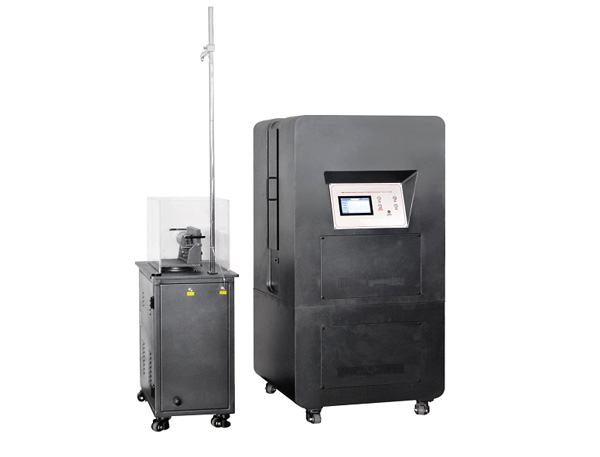

XHF-126 Warning Clothing Retroreflectometer

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

XHF-126 Warning Clothing Retroreflectometer is used to simulate the evaluation of reflective performance of occupational high visibility warning materials under dry and wet conditions, and to measure the reflection coefficient of sample surface. It is suitable for all kinds of visibility warning clothing to be worn by various posts to ensure the safety of personnel.

Test Standards

EN 471, ISO 20471

Product Features

1. Use Semantic STM 32 micro compressor.

2. Imported spotlight source.

3. Imported high precision Illumination sensor (2 Pcs).

4. Dual control, touch screen operation and PC operation.

5. Dry state and wet state selection.

6. Adopt Infrared to measure distance between specimen surface and light detector.

7. Automatic and accurate adjustment of incident Angle and observation Angle.

8. Three test methods: Manual measurement, Automatic Measurement.

Technical Parameter

Specimen Size	150mmx150mm
Light source	A standard light source, color temperature 2856K
Distance between light detector and surface of specimen	≥15m, resolution: 1mm
Light detector measurement range	Main control unit: (0.00001-20)lx Sample Unit: （0.1-300）lx
Observation Angle α	12′-2°adjustable, resolution: 1′
Incident Angle β	0°-40°adjustable, resolution: 0.1°
Measurement Speed	Direct method: 6.67mm/s Curve method: 1.67mm/s
Rotation Speed	Observation Angle: 10.8′/s Incident Angle: 12°/s
Vertical illumination uniformity	＜4%
Coefficient of retroeflection	<=±3% (standard dark room)
Rain nozzle diameter	1.19mm±0.01mm
Distance between nozzle and specimen	1000±2mm
Rain speed	284mm/h
Water column contact sample in the vertical direction and the sample surface Angle	10±1°
Collector	Diameter: 105±1mm, Height：245±1mm
Power Supply	220V, 50/60Hz, 1KW
Dimension	Main Control Unit: 820mmx650mmx1700mm Sample Unit:630mmx430mmx1900mm
Weight	Main Control Unit: 115Kgs Sample Unit: 80Kgs
