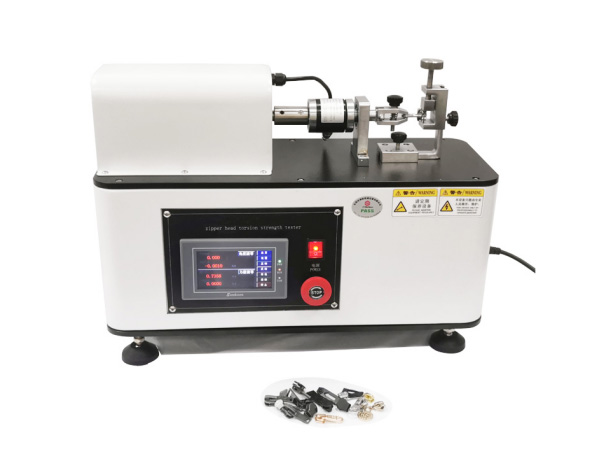

XHF-55B Zipper Torsion Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

Zipper Torsion Testing Machine is To test the torsional force of variety types of zipper pullers.

Test Standards

EN 16732, ASTM D2061

Product Features

1. Use the touch screen control is easy to operate with straightforward interface.
2. Horizontal Structure.
3. Adopt low-noise reducer and servo system which can run smoothly and less noise.
4. PLC Control, automatic measurement, automatic calculate testing results
5. Micro printer can print related test results.

Technical Parameter

Torque Range	0-10N.m
Torque Accuracy	0.25%F.S
Testing Speed	0-800°/min (Can be set)
Angle Measurement Range	0-180°
Control	Manual/Automatic
Direction	Clockwise/Anti-Clockwise (Selectable)
Dimension	520×200×390mm
Weight	32Kgs
Power Supply	220V, 50Hz
