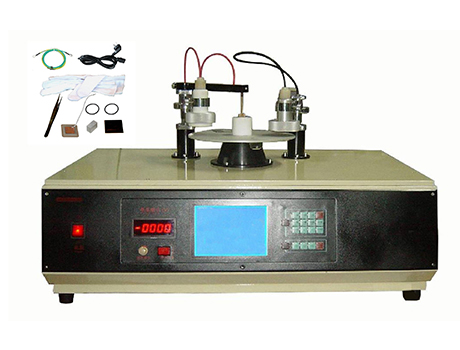

XHF-ET-01 Electrostatic Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

XHF-ET-01 Electrostatic Tester is used for testing the electrostatic performance of various fiber, yarns, fabrics, carpets, decorative materials and other platy manufactures after corona charged.

Test Standards

FZ/T01042, GB/T 12703

Product Features

Adopt high technology, high precision measurement, LCD display and operation.

It have fully automatic operation method and semi-automatic operation method.

It have constant pressure test method and regular time test method.

Technical Parameter

Voltage range	0-10KV (Continuous adjustable)
Disc speed	1500r/min
Specimen size	45×45mm
Electrostatic pressure decay time range	1-9999.9s digital set
Electrostatic pressure discharge time range	1-99s digital set
Specimen pre-rotation time range	1-99s digital set
Distance between discharge need and specimen	15mm can be calibrated
Dimension	700×480×450mm
Weight	50kgs
Power Supply	110V/220V, 50Hz/60Hz
