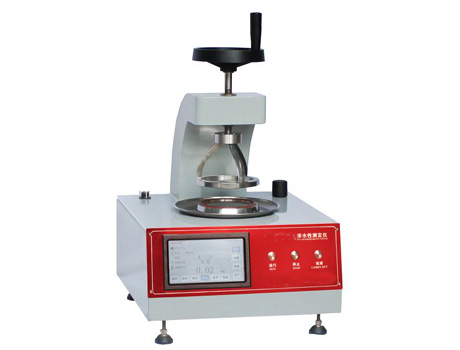

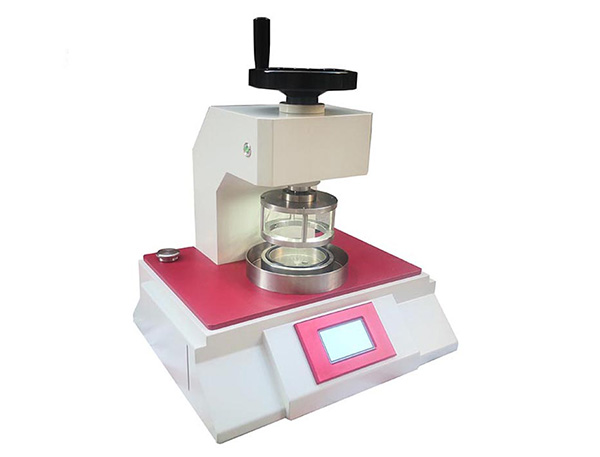

XHF-07A Fabric Hydrostatic Head Pressure Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

Fabric Hydrostatic Head Pressure Tester is used to determine not only the fabric hydrostatic pressure resistance, but also the hydrostatic pressure proof performance of the coating materials.

Test Standards

ISO-811, AATCC 127, BS EN20811, ISO 1420, JIS L1092

Product Features

Microcomputer control, English Color Touch Screen, five built-in test methods .

Adopt imported pressure sensor, over pressure protection.

The built-in tank design, creative balance system of water pressure rate, rising speed

stability and accuracy.

Clamp made of stainless steel, equip LED light to view specimen clearly.

Equipped with micro printers can print testing report.

Five Testing Methods:

Turbocharged method

Constant pressure time method

Constant pressure regularly method

Leakage water method

Flexure relaxation method

Technical Parameter

Testing range	0-200Kpa (up to 20000mm)
Accuracy	0.5%
Resolution	0.01Kpa
Elevation Speed	1Kpa/min-100Kpa/min
Sample Testing Area	100cm2
Unit:	Pa, Kpa, mmhg, mmH2O, cmH2P, PSI, Bar
Printer	Micro Printer
Dimension	550×460×680mm
Weight	57kgs
Power	110V/220V, 50Hz/60Hz
