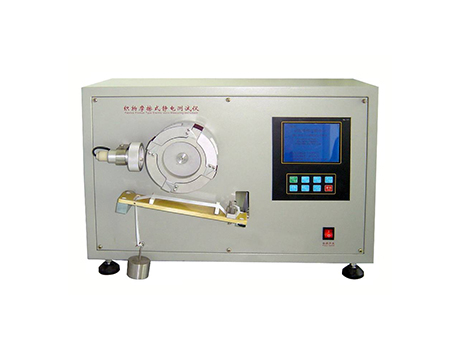

XHF-ET-03 Fabric Friction-Type Electrostatic Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

Fabric Friction-Type Electrostatic Tester: A fabric specimen is mounted on a rotary drum and mechanically rubbed against a stationary rubbing cloth as the drum rotates. The electrostatic potential caused by the friction between the specimen and the rubbing cloth is measured by a detector electrode during the rotation cycle.

Test Standards

JIS L1094, ISO 18080-2

Product Features

Equipped with high precision electrode, can determine the voltage quickly and accurately.

Big LCD display, peak voltage and half life value will be automatically display and record.

Two test methods: fixed pressure test method and fiexed time test method.

Auto off friction, auto off motor.

Technical Parameter

Electrostatic voltage test range:	0 -10kV, Accuracy: ≤ +/- 1%
Rotary Drum	outside diameter 150mm, the width: 60mm
Drum Rotation Speed	400 rmp (Friction speed: 190+/-10m/min)
Tension Load	4.9N (500g)
Timing	0-9999.9s, error +/-0.1s (adjustable)
Dimension	650mm×380mm×470mm
Weight	50kgs
Power Supply	110V/220V, 50Hz/60Hz
