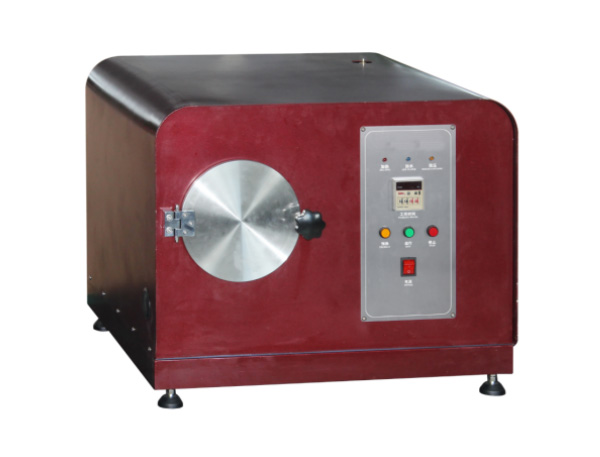

XHF-73 Steaming Cylinder With Integral Steam Generator

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

Steaming Cylinder With Integral Steam Generator is used to determine the shrinkage of unstressed fabric samples subjected to steaming in a closed chamber. Provided with a stainless steel fabrick supporting frame to accommodate 4 samples and an automatic timer. The Steaming Stability Template is suitable for use with steaming cylinders when testing fabrics for relaxation shrinkage. It is used to mark the fabrics before testing using a benchmark of 250mm and to read shrinkage directly in percentage after testing.

Test Standards

BS 4323, ISO 3005

Technical Parameter

Steam Generator	Built In
Steam Inner Chamber Size	Diameter: 102mm, Length: 360mm
Steam Time	1-99.99s (adjustable)
Steam Working Pressure	0～0.38MPa (factory set: 0.11Mpa)
Power	AC 220V, 50Hz, 3KW
Dimension	600mmX550mmX493mm
Weight	70Kgs
