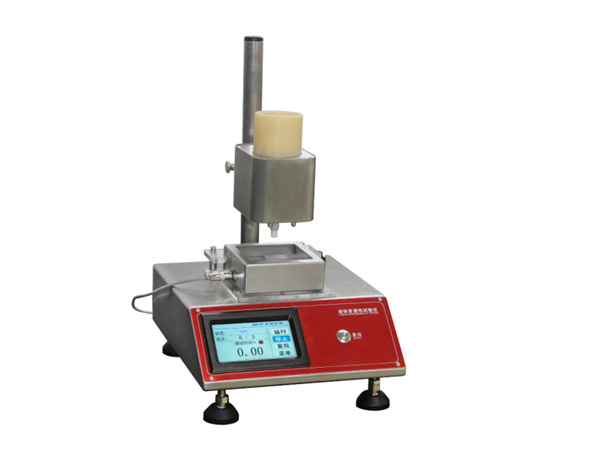

XHF-22G Liquid Strike Though Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Product Description

XHF-22G Liquid Strike Though Tester is used to test luquid strike-through time of nonwovens

Test Standards

ISO 9073-8, ISO 9073-13, ISO 9073-14

Product Features

1. The main components are all made of stainless steel, which is durable;

2. The sensing electrode material is acid- and alkali-corrosive material;

3. The instrument automatically records the time and automatically displays the test results, which is simple and practical;

4. Color touch screen display and control, Chinese and English interface, menu operation mode;

5. Check the test results in the test report.

Technical Parameter

Burette Capacity	50ml
Flow rate	25ml in （3.5±0.25)s
Dimension of strike through plate	100mmx100mmx25mm
Weight of strike through plate	500g
Base Plate Material	Acrylic Sheet
Specimen Size	125mmx125mm
Timing	0-9999.99s, accuracy: 0.01s
Dimension	240mmx400mmx320mm
Weight	9Kgs
Power Supply	220V, 50Hz
