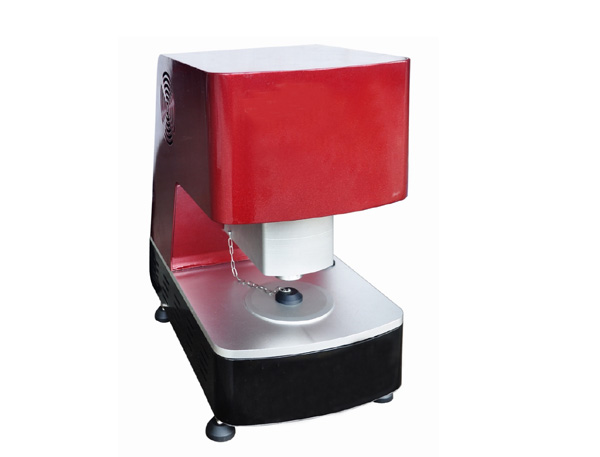

XHF-127 UV Transmittance Analyzer

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Share:   

Product Description

XHF-127 UV Transmittance Analyzer is used to test the UV transmittance and UV protection of textiles and directly measure the UV protection factor (UPF) of textiles.

Test Standards

GB/T 18830, AATCC 183, BS 7914, EN 13758, AS/NZS 4399

Product Features

1. Using a xenon arc lamp as a light source and optically coupling the fiber to transmit data.

2. Full computer control, automatic data processing and data storage.

3. A variety of graphics, report statistics and analysis.

4. The application software includes pre-programmed solar spectral radiance factor and CIE spectral erythema response factor to accurately calculate the UPF value of the sample.

5. The constants ta/2, n-1 are open to users, and users can enter their own values to participate in the calculation of the UPF value of the final result.

Technical Parameter

Wavelength Detection Range	(250 -400) nm resolution 0.2nm, accuracy 1nm
T(UVA)（315nm-400nm）	Measurement Range: (0-100%), Resolution: 0.01%, Accuracy: 1%
T(UVA)（280nm-315nm）	Measurement Range: (0-100%), Resolution: 0.01%, Accuracy: 1%
UPF	Measurement Range: (0-2000), Accuracy: 2%
Testing Results	T(UVA)AV, T(UVB)AV, UPFAV, UPF
Dimension	300mm×500mm×700mm
Weight	40Kgs
Power Supply	AC 110V/220V, 50Hz/60Hz
