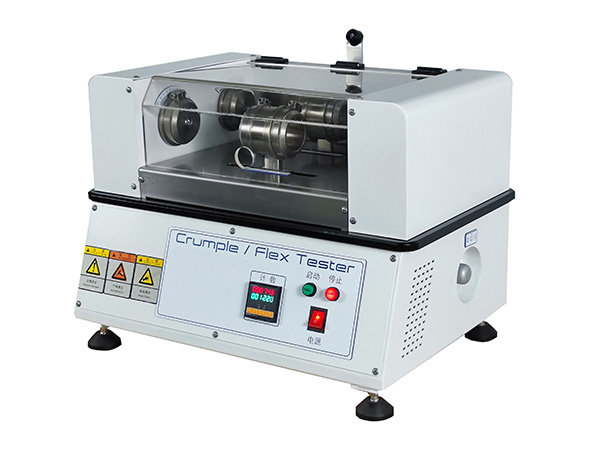

Fabric Crumple Flex Tester: A rectangular test piece of coated fabrics is sewn into a cylindrical shape. The cylinder of coated fabric is mounted between two discs and secured into position. One of the discs oscillated on its axis through approximately  90°. This induces twisting in the coated-fabric test piece cylinder. At the same time, the other disc reciprocates along its axis, thus causing the cylindrical test piece to compress along its length. This twisting and simultaneous compressing of the cylindrical test piece is continued for either a pre-set number of cycles or unitl damage of the test piece is apparent.

The equipment tests a tube of fabric by twisting it through 90° stretching alternately compressing the tube at the same time. After completion of the test the fabric is tested for resistance to penetration by water. Crumple flex Tester fitted with electronic pre-determined counter with automatic stop at a pre-determined number of cycles, also fitted with acrylic plastic interlock safety cover.

 ISO 7854, BS 3424

1. The new product modeling design concept makes the product structure compact, beautiful in appearance, and harmonious proportion;

2. Fixure and fixture seats and other parts are sandbladed and nickel -plated technology. Anti rust and beatiful.

3. Transparent protective cover, with electronic access control technology, open the protective cover instrument, stop running.

4.Equipped with an emergency stop button, you can quickly stop running when you encounter an emergency to protect the safety of personnel.

4. Four Stations design, which greatly improves the test efficiency.

5. Eccentricity to the re -driven mechanism, the structure is simple, the itinerary is stable, the operation is stable and reliable, and the operation is smoother and quieter.

6. Optimize the transmission structure, and the left and right sides are symmetrically used to carry the reciprocating mechanism with two straight slide rails, with high orientation excellent accuracy, smoother and quieter.

7.  Circular ventilation system, strong fan with the body's heat sink pores, use air to oppose the principle of flow, quickly dissipate the heat, cool down the instrument for a long time, and ensure that the internal operation environment of the instrument is stable.

8. Manual adjust the rotation disk’s position and angle to install specimen more conveinent.
