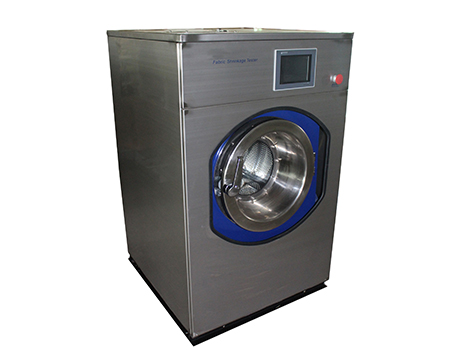

XHF-12 Automatic Fabric Water Shrinkage Tester

Product Category：Fabric and Textile Tester

 Click to find us  Contact us

Product Description

Fabric Water Shrinkage Tester is used for testing the shrinkage and relaxation after washing of various textiles such as cotton, wool, silk, linen, chemical fiber, knitwear, costume etc. It is fit for the factory and testing center with the long-term test.

Test Standards

ISO-6330-2012, ISO 5077, IWSTM31, BS4923, EN25077/26330, JISL1909, FZ/T70009.

Product Features

The apparatus used are for industrial design, suit to the harsh long continuous testing requirements
Suspended inner canister exclusive used, smoothly operation without vibration
Include 13 groups ISO 6330-2012 washing programs, users can self define 36 groups their own shrinkage procedures, and provide programs storage
Variable frequency control technology used, to protect the electrical safety and the smooth operation.

Large touch screen display, figures show clearly

Using high-precision pressure sensors, to ensure that accurate and reliable water level.

Outside and inside fully use stainless steel.
Variable frequency motor, switch smoothly between high speed and low speed

Technical Parameter

Category	Horizontal roller type, front door feeding mode
Inner layer roller	Diameter : 520+/-1mm
	Depth: 315+/-1mm
Inner and outer roller gap	2.8cm±0.1cm
Lift vane quantity	3 PCS 120° even distribution
Lift vane height	53mm+/-1mm
Rotation action	Normal On: (12+/-0.1)S, Normal Off (3+/-0.1)S Mild On: (8+/-0.1)S, Mild Off (7+/-0.1)S Gentle On: (3+/-0.1)S, Gentle Off (12+/-0.1)S
	Soft: clockwise rotation (3+/-0.1)S, stop (12+/-0.1)S anticlockwise rotation (3+/-0.1)S, stop (12+/-0.1)S
Rotation Speed	Wash: (52+/-1)r.p.m Low Spin : (500+/-20)r.p.m High Spin: (800+/-20)r.p.m
Water level control	Low level:10cm , High level:13cm
Fill water time	< 2min (water in high level 13cm
Drainage duration	< 1min (water in high level 13cm)
Setting range to water temperature	Room temperature to 99C (accuracy: +/-1C)
Heating power	5.4kw
Washing capacity	5kg
External Dimensions	850mm×750mm×1200mm
Weight	200Kg
Power source	220V, 50Hz, Three Phrase
