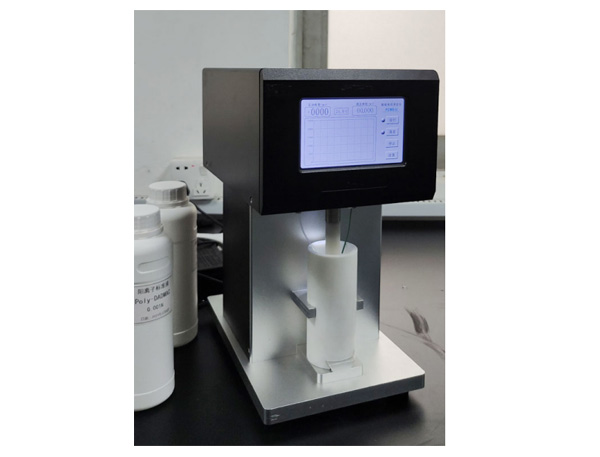

The Particle Charge Analyzer is a portable lab instrument that is used to determine optimum chemical dosage in water, wastewater and industrial processes. The analyzer can also be used for quality control of chemicals. The digital display indicates the polarity and charge (streaming current value) of the sample. The charge demand and optimum dose can be quickly determined with a simple titration.

A Type: Fully Automatic Titration, 2 Pcs Titration Pump

B Type: Semi-Automatic titration, 1 Pc Titration Pump

Applications

Water Treatment ‣ Paper Industry ‣ Wastewater ‣ Chemical Industry ‣ Ceramics ‣ Minerals ‣ Remediation

EN 50081, EN 50082, EN 61010

Measure the amount of particle charges

Measure negative/Positive Ionic demand)

Measure amount of chemical charge

Confirm ISO IEP

Measure PH value (optional)

Display mv or μ eq/L

Real time display data and titration graph

1.Measurement Parameter：Streaming current -2500mV～+2500mV

2.Sample Volume:10mL-30mL

3. Titration Accuracy: 1u L

4.Material of Piston:PTFE

5.Material of Container: PTFE

6.Material of Electrode: Gold

7. Dimension: 160×260×330mm(W×D×H)

8. Weight：8.5kg

9. Power:110-220V 50Hz/60Hz
