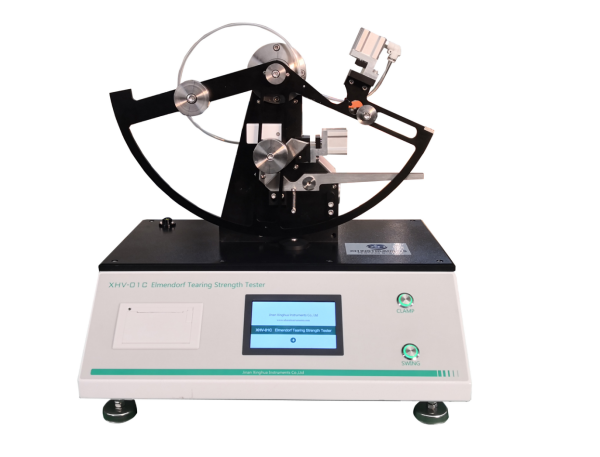

XHV-01C Elmendorf Paper and Board Tearing Strength Tester

Product Category:Paper Tester

Share:

Product Description

Elmendorf Tearing Tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.


Test Standards

ISO6383-1, ISO 6383-2, ISO 1974, ASTM D1922, ASTM D1424,  ASTM D689, TAPPI T414, ASTM D1922


Product Features

The instrument is controlled by micro-computer, 5 inch color touch screen display



The instrument is designed by automatic and electronic measurement which improves the testing accuracy



Pneumatic specimen clamping and pneumatic release of pendulum could avoid the system error effectively



Computer assisted horizontal adjustment system could maintain the instrument optimum status



Elmendorf tearing tester equipped with double system operation, micro-computer or computer software control



Equipped with pendulums of multiple capacities


Storage and editing of up to 1000 readings


Automatic calibration of pendulum


Calculates force of multiple plies


Have statistic function: max, min, average



Units: grams-force, millinewtons, lbs-force



Select related pendulum accordingly


Technical Parameter

Pendulum Capacity

200g (2000mN), 400g (4000mN) , 800g(8000mN), 1600 g(16000mN)3200g (32000mN), 6400g64000mN)

Unit

Lb, gf, mN

Indication accuracy

±1%

Resolution

0.01mN

Tearing Length

43±0.5mm

Sample Clamp

Pneumatic

Release

Pneumatic

Clamping Pressure

0.4-0.8Mpa

Dimension

470mm×340mm×530mm

N.W.

30kg

Power Supply

AC 220V±10%50Hz/60Hz
