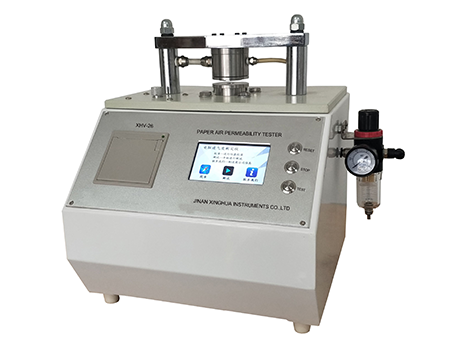

XHV-26 Paper Air Permeability Tester

Product Category：Paper Tester

 Click to find us  Contact us

Share:   

Product Description

XHV-26 Paper Air Permeability Tester adopt high technology to measure paper air permeability, it meet schopper method, bentsen method and gurley method

Test Standards

ISO 5636-2, ISO 5636-3, ISO 5636-5. ISO 2965

Product Features

1. Adopt important USA chip and load sensor to make test accurately.

2. The whole test is fully automatic, fast and accurate.

3. The instrument is controlled by micro-computer, with touch screen operation which is convenient for customers to operate or view test data.

4. Micro-printer, fast and clear printing, have statistical function.

Technical Parameter

Measurement range	0-5000mL/min,0.01-100μm/(Pa.s)
Test accuracy	±1ml or ≤1%
Unit	mL/min, μm/(Pa.s), cu
Test area	(10±0.02)cm2
Pressure difference	0.05kPa-10 kPa (adjustable)
Power Supply	AC 110/220V, 50/60Hz
Weight	30Kgs
