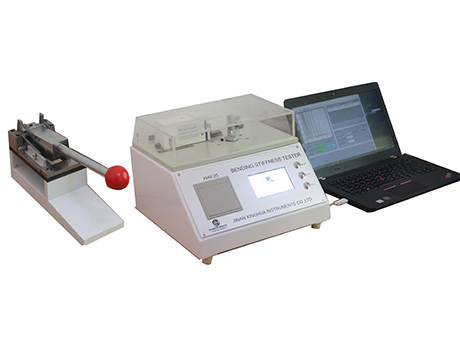

XHV-25A Paper and Cardboard Stiffness Tester
Product Category:Paper Tester
XHV-25A Paper and Cardboard Stiffness Tester is used to evaluate the stiffness of paper and cardboard
ISO5628, ISO 2493-1, TAPPIT556.
Adopt high precision load sensor, the error can be controlled within 1%.
Plastic cover can protect measurement head from damage, can preset angle, stainless steel clamp, long time use.
Color touch screen operation system, Aluminum control panel
Check or delete the testing records randomly
Thermal printer, fast and clear printing
Calculate, count and print the testing result automatically
Can be connected to PC and output results with our professional software
Model | A | B |
Test Specimen | Paper | Paper and Board |
Testing Range | (0-2000)mN | (20-10000)mN |
(0-100) mN.m | (1-500)mN.m | |
Resolution | 0.1mN | 1mN |
Indication Error | ±1% | |
Testing speed | 200°/min and 300°/min | |
Rated Bend Angle | 0°-90° | |
Load arm length | (5-50)mm (adjustable) | |
Dimension | 15 kg | |
Power | AC 220V±10%,50HZ |
