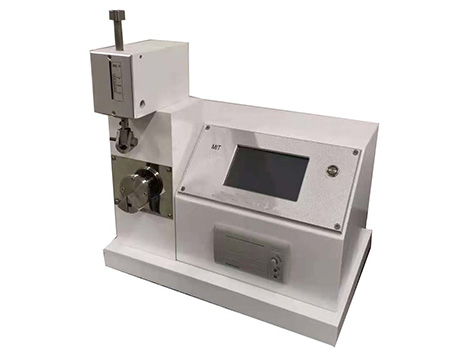

XHV-21 Paper MIT Folding Tester

Product Category：Paper Tester

 Click to find us  Contact us

Product Description

XHV-21 Paper Folding Endurance Tester is a new type testing instrument to test Paper’s Folding Endurance, which is designed to be in accordance with related national standard ISO 5626, Paper and board-Determination of folding endurance

Test Standards

ISO 5626

Product Features

Adopt stepless motor driven, low noise, steady transmission, high precison of folding angle and folding speed.

Attached weights can calibrate spring tension at any time to ensure steady and precision results.

Touch screen operation, automatic complete full test, has statistics function, grip reset automatically.

Thermal printer, fast and clear printing.

Technical Parameter

Measuring range	1-99999 times
Folding angle	135°±2°
Folding speed	(175±10) times/min
Tension adjust range	4.9N-14.7N
Folding head specification	0.50mm,0.75mm (Standard)
Folding head width	19±1mm,
Folding radius	R0.38mm±0.02mm
Specimen Dimension	15mmx150mm
Power	AC220V±10% 50Hz
dimension	330 mm(L)×250 mm(W)×400 mm(H)
Gross weight	30kg
