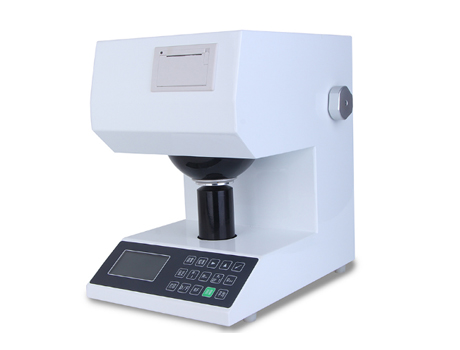

XHV-09 Brightness and Color Tester

Product Category:Paper Tester

Share:

Product Description

Brightness and Color Tester is the first new automatic one-button measurement of all color and whiteness technical parameters in the industry developed by the company. It is widely used in paper-making, printing, textile printing and dyeing, ceramics, building materials, chemicals, food, salt production and other industries and other production and commodity inspection departments that need to determine the color and whiteness of objects.


Test Standards

ISO 2469, ISO 2470, ISO 2471,ISO 9416, ISO 11475, GB 7973, GB 7974, GB 7975, GB 3979, GB 8940.2, GB 2913, GB 1840, GB 13025, GB T/5950, GB 8425, GB 9338, GB 9984.1, GB 13176.1, GB/T 13835.7, GB 4739, GB 6689, GB 8424,  GB 11186.1,  GB 11942, GB 13531.2, GB 1543ISO2471, GB10339, GB 12911, GB 2409 ect.


Product Features

Measure the color of the object

Measure CIE whiteness (Gantz visual whiteness) W10 and color cast value Tw10

Measure ISO whiteness (R457 blue lightness) and Z whiteness (Rz)

Measure the fluorescence whitening caused by the emission of fluorescent substances (the sample contains fluorescent whitening)

Measure the whiteness of building materials and non-metallic mineral products WJ

Measure Hunter Whiteness WH

Measure the whiteness and color of the fiber (supporting fiber sampler)

Measure the whiteness of the powder, Lab and color difference

Measurement of yellowness YI, opacity OP, light scattering coefficient S, light absorption coefficient A, transparency, ink absorption value.


Technical Parameter

Power Supply

AC(100~240)V (50/60)Hz 50W

Sample Size

Test plate diameter should not be less than 30mm while sample thickness should not exceed 40mm

Indication Accuracy

Chromaticity Coordinate≤0.0001 others are 0.01

Repeatability Accuracy

Rx,Ry,Rz≤0.10

Chromaticity Coordinate

≤0.001,R457≤0.10

Specular Reflectance Accuracy

≤0.1

Print

Built-in thermal printer

Dimension

380(L)×260(W)×400(H)mm

Net Weight

15Kg
