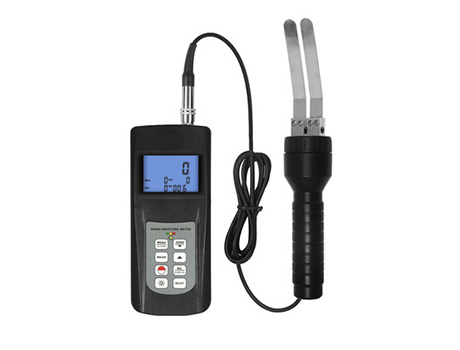

XHF-32 Paper Moisture Meter

Product Category：Paper Tester

 Click to find us  Contact us

Product Description

This Paper Moisture Meter uses contact measurement. The moisture of the measured objects is measured by measuring the electrical conductivity between two electrodes.

Product Features

* With storage and statistical functions. Can store 240 groups of measurements.

* Two presentations, digital display and color coded LED indication.

* Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value.

* Use USB data output to connect with PC.

* Provide Bluetooth data output choice.

Technical Parameter

Sensor Type		Contact Type
Range		0-80%
Accuracy		+/-(0.5%n+1)
Resolution		0.1
Display		LCD
LED Indicator		Green LED Represents a Safe,Air-dry State
		Yellow LED Represents a Borderline State
		Red LED Represents a Damp State
The Statistics Available		Last value / Mean value / Max. value / Min. value / Number of Readings
Memory		240 groups
Operation Conditions	Temperature	0-50C
	Humidity	<90%RH
Power Supply		4x1.5V AAA Size(UM-4)Battery
Dimensions	Main Unit	150x65x30mm
	Sensor	265x44x44mm
	Length of electrode	77mm
	Cross section size of electrode	14x1mm
	Gap between 2 electrodes	4mm
Weight(Not Including Batteries)		280g
Standard Accessories		Main Unit
		Sensor
		Carrying Case (B04)
		Manual
Optional Accessories		USB Data Cable with Software
		Bluetooth Data Adapter with Software
