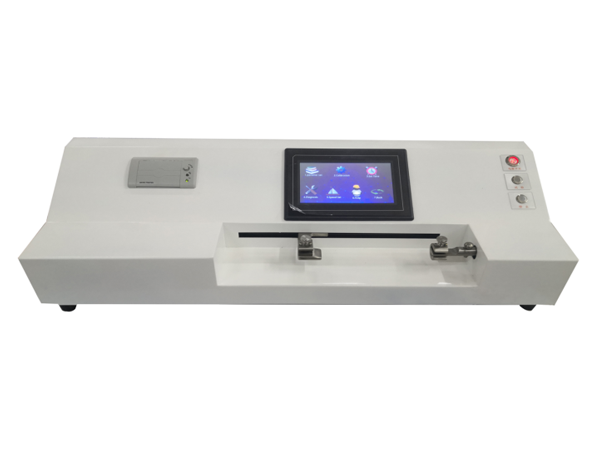

XHL-01HP Horizontal Paper Tensile Strength Tester
Product Category:Paper Tester
The XHL-01 HP Paper Tensile Strength Tester is special in testing paper and paperboard. It's used to test the tensile force, tensile strength, tensile index, elongation, stretch at break, fracture length, tensile energy absorption, tensile energy absorption index, wet tensile strength....etc.
ISO 1924/2, ISO 12625-4, ISO 12625-5
Adopt high quality stepping motor, high precision ball screw transmission,
low noise, control precisely.
7 Inch Large touch screen English menu display, easy and quick operation.
Get the result directly including average, standard deviation, coefficient of variation
High automation with the advanced parts,has the function of testing message
processing data and motion control,besides it can reset automatically,
remember data,and protect and diagnose error
Preset gauge length and test speed, real time display testing graphs, make test
high efficient.
As to the normal size can test the speed directly.Besides can also adjusted by the needs.,set the fit tensile speed to change the sample's length and width.
Calibration process is easy.
Testing Range | 0-300N (Optional: 50N, 100N, 500N) |
Force Resolution | 0.01N |
Force Measurement Accuracy | Better than ±1% |
Distance Between Grips | 20-280mm adjustable |
Extension Accuracy | ±0.1mm |
Testing Speed | 1-399mm/min adjustable |
Return Speed | 1-399mm/min adjustable |
Display and Operation | 7 Inch Color Touch Screen |
Dimension | 800mmx300mmx210mm |
Weight | 35Kgs |
Power Supply | AC220V±10% 50HZ |
