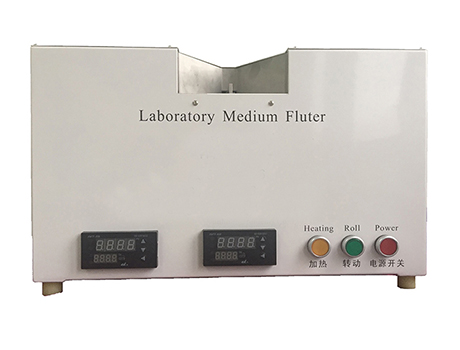

XHV-03-5 Concora Medium Fluter

Product Category：Paper Tester

 Click to find us  Contact us

Product Description

Concora Medium Fluter is used to determinate of flat crush strength of corrugated paper when pressed standard waveform (i.e., from the flute corrugated base paper), comply with standard: ISO7263: corrugating medium – Determination of flat crush resistance after laboratory fluting.

Test Standards

ISO7263

Product Features

Instrument using single-chip microprocessor control technology, Precision temperature controller accurate temperature adjustment,

Automatic temperature compensation mode with PID control, fast response, high steady precision,

Digital display actual temperature and set temperature,

With over-temperature protection device,

Set parameters memory automatically after power failure

With parameter self-tuning function, Precision gear transmission, Standard Buttons sensitive durable,

Flute corrugated paper from the automatic mode

Technical Parameter

Standard	A corrugated
Working speed	4.5r/min
Temperature display resolution	1 °C
Temperature measurement accuracy	0.5 grade ± 1 word
Adjustable temperature range	Room temperature - 200 °C
Working pressure adjustable range	(49 -108) N
Standard working temperature	175 °C
Spring tension	100N
Dimension	564mmX377mmX330mm
Power Supply	AC 220V, 50Hz/60Hz
